| Maximum Operating Pressure | 17.5 MPa, 175 bar |
|---|---|
| Division | Polymer Hose Division Europe |
| Application | Antifreeze Solutions, Diesel Fuels, Air Brake Systems |

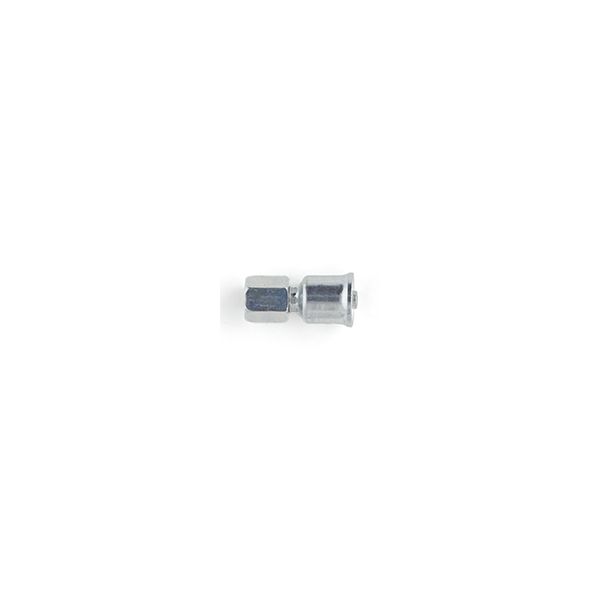

| Product Style | Female JIC 37° - Swivel |
| Specifications Met | ISO 12151-5-SWS |
| Product Type | Crimp Fittings No-Skive |
| Body Material | Steel |
| Shape | Straight |
| Materials of Construction | Brass |
| Hose Inside Diameter | -32 |
| Connection 2 Size | 2-1/2"-12 inch Thread |
| Connection 1 Size | -32 (Size), 2 inch Hose I.D., 50.8 mm Hose I.D. |
| Brand | Parker |
| Connection 2 Type | Female, Female JIC 37°/SAE 45° Dual Flare - Swivel, JIC 37°/45° Flare SAE, Dual Flare Swivel |
| For Fluid Type | Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum Base), Fuels (Diesel) |
| Hex Size | 2-7/8 inch (see drawing legend W) |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery |
| Connection 1 Type | Hose |
| Configuration | Hose to Port |
| Technology | Fluid & Gas Handling |
| Hose I.D. (size) | -32 |
| Port Size | 2" |
| Port Type | DKJ |
| Connection Length | 52 mm (see drawing legend B) |
| Fitting Length | 84 mm (see drawing legend A) |
| Port Connection | 2" |
| Connection Size | 2-1/2"-12 inch Thread |
| Coating | Chromium 6 Free-plated |
