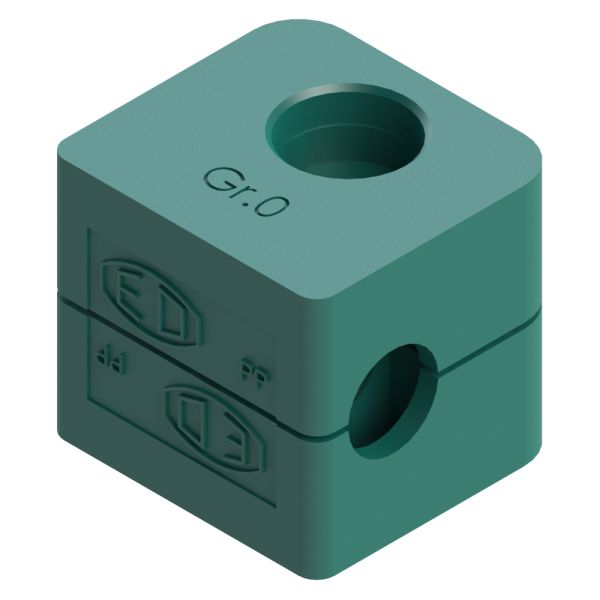

EO-Tube Clamps according DIN 3015-1 for normal mechanical requirements are available in nine standard sizes. – Outer tube diameter for the metric series 4 to 101.8 mm – Outer tube diameter for the inch-size series R 1/8˝ to R 3½˝ – Outer tube diameter for the imperial size series 1/4˝ to 4˝ The clamp body is available in a round/closed version. Welding plates, rail-supports, cover plates and construction types.
CLAMP MATERIAL: Polypropylene –30°C up to +90°C, colour dark green Polyamide –40°C up to +120°C, colour black Rubber –50°C up to +120°C, colour black Aluminium up to +300°C All metal parts are also available in stainless steel. Other materials upon request. Stainless steel qualitities are to 1.4401/1.4571 (AISI 316/316 Ti), resistant to rust and acid.
MARKETS: • Automotive • Defence • Energy • Environment • Industrial • Infrastructure • Machine Tools • Materials Handling • Mobile • Oil and Gas • Power Generation • Process • Transportation • Water
APPLICATIONS: • Suitable for general hydraulic applications.
Features/ Benefits of EO tube clamps: • The function of tube clamps is the fixing of straight tubes, bent tubes and hoses, the broad product range of Parker tube clamps helps to find a solution for all requests and therefore extends the range of applications. • Their notable features are re-set capability, high tensile strength, very high abrasion resistance and excellent resistance to cold. This range of features enlarges the number of possible applications and stretches the life-cycle of tube clamps.
