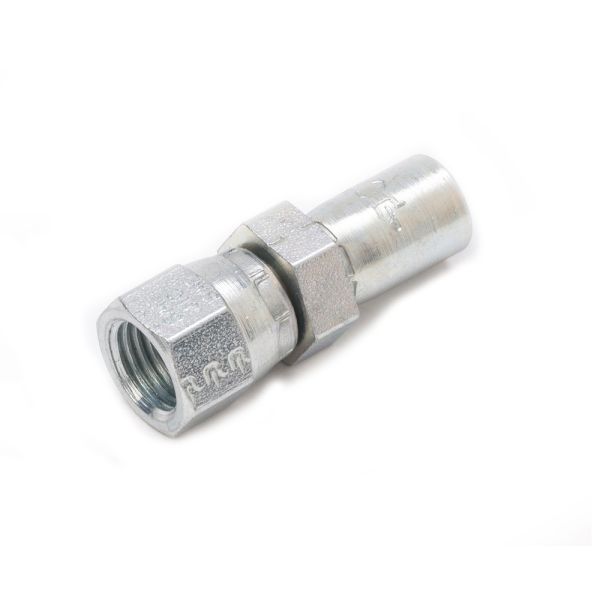

Parker’s CY Series are durable, steel, crimp style permanent fittings that are qualified for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose, and are especially useful in applications that involve diagnostic hydraulic lines, grease and lubrication lines, construction equipment, mobile equipment, and more. They are available in straight crimp fittings and 90° elbow shapes to accommodate different application requirements.
The CY Series includes the unique zerk grease fittings, designed with an integrated nipple, that save money per zerk connection in unnecessary adapter costs. Used with Parflex 1/8" hoses, grease zerks also save hundreds of dollars of waste in your operation by eliminating gallons of unnecessary “in-line” grease versus larger bore rubber hoses with fittings.
Markets:
• Material Handling
• Industrial
• Agriculture
• Construction
• Mobile Equipment
• Transportation
Features/Benefits:
• Available as a straight crimp fitting or as a 90° elbow shape
Applications:
• Hydraulic and pneumatic systems where a small O.D. hose is necessary
• Diagnostic hydraulic lines
• Grease and lubrication lines
| Maximum Operating Pressure | 6000 psi, 41.4 MPa, 414 bar |
|---|---|
| Division | Parflex Division |
| Application | Fluid Control, Diagnostics, Lubrication, Material Handling, Agriculture Equipment, Construction Equipment, Industrial Hydraulics |
| Product Style | Female JIC 37° - Swivel - Straight |
| Specifications Met | n/a |
| Product Type | Hose Fittings |
| Body Material | Steel |
| Shape | Straight, Straight SAE |
| Length (inch) | 1.52" |
| Connection 2 Size | Flare 5/16"-24 inch Thread, Flare 5/16"-24 |
| Connection 1 Size | 1/8 inch Hose I.D., 1/8 inch |
| Brand | Parker |
| Connection 2 Type | Female, 37° Flare Swivel |
| For Fluid Type | Hydraulic Fluids, Water, Oil, Pneumatic Media |
| Hose I.D. (inch) | 0.125" |
| Hex Size | n/a |
| Industry | Industrial Manufacturing Equipment, Transportation, Off-road Machinery |
| Connection 1 Type | Hose |
| Configuration | Hose to Port |
| Technology | Fluid & Gas Handling |
| Connection Length | 24 mm, 15/16 inch Cut-off allowance |
| Fitting Length | 38.608 mm, 1.52 inch |
| Coating | Chromium 6 Free-plated |
| Hex Size 1 | n/a |
