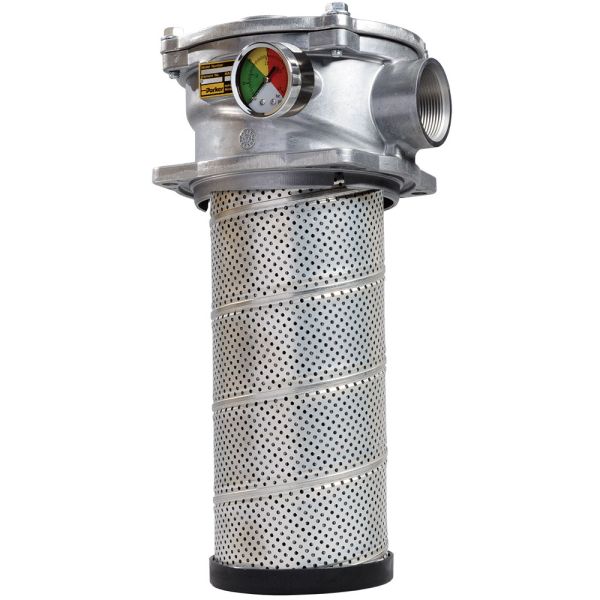

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.
The Parker GLF series is designed to provide high quality filtration to hydraulic systems. Patented design engineered for high flow capacity with low pressure drop and long life between element change-outs. Design also allows for 2 inlet ports providing flexibility and the opportunity to greatly reduce installation costs. Inside to-out filtration direction allows for collected contaminants to remain in the element during replacement and not reenter the system.
Typical Applications • Deck and Mobile cranes • Firefighting equipment • Forwarders • Hydraulic presses • Marine steering units • Power packs • Waste management, dump and fork lift trucks • Excavators • Harvesters • Waste balers • Reach stackers • Wheeled loaders • Drilling equipment • Industrial Power units
Features and Benefits Filter design and element construction with perforated metal outer wrap Provides excellent flow diffusing, eliminating aeration No bowl required Reduced cost and assembly weight Improved performance
High efficiency Microglass media maximizing filtration area Combines high particle capture efficiency with high dirt holding capacity and lower DP Cleaner fluids, longer lasting with fewer service intervals Continuous filtration for cold start ups Lower operating costs
Element design includes integral bypass valve with closed bottom end cap New bypass with each element change Ensures captured contaminants are removed with each element change Ensures reliable bypass performance No leakage Reduced risk for contamination during service
Optional Magnetic pre-filtration Removes large ferrous contaminants Extends element life Visual indication of component wear
Patented filter element Promotes genuine service parts Guaranteed quality of filtration
Inside-to-outside filtration All captured contamination retained inside the element No recontamination of system during the change of the element
Service friendly product design Easy servicing by simple element change Endcap Bridge grip for easy element removal Reduces service time for filter
Visual or Electrical indicators Know exactly when to service the element No downtime from servicing
Top access element service Oil remains in housing Quicker element change No spills Reduced maintenance costs
Head with 2 Inlet Ports Can be used as a fill port Offers installation flexibility Filtered fill Reduced connections
