1-1/2" SAE HI-TEMP

Be the first to review this product

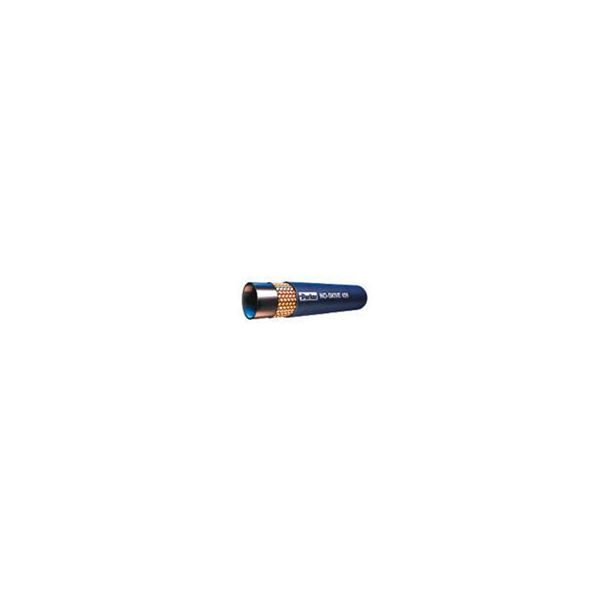

Parker's 426 hose is a hydraulic industry standard hose that has a pressure range of 375-2750 PSI, which is designed for high-temperature applications.

Availability: In stock

SKU

426-24

Available Qty

Lead Time

Details

Parker's 426 hose is a hydraulic industry standard hose that has a pressure range of 375-2750 PSI, which is designed for high-temperature applications. The 426 hose is designed, built, and tested to meet SAE J517 100R1AT / SAE J1942 specifications. Sizes range from ¼” to 2” in diameter to fit the requirements of various markets.

Markets:

• Transportation

• Military

• Construction

• Agriculture

• Grounds & Building Maintenance

• Material Handling

Features/Benefits:

• Meets SAE J517 100R1AT / SAE J1942 specifications

• The distinctive blue cover, MSHA accepted, indicates high temperature rating

• Compatible with temperatures up to 302 ͦF

Applications:

• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:

• 43 series fittings

More Information

More Information
Media	Petroleum Hydraulic Fluids, Lubricants
Maximum Operating Pressure	500 psi, 3.5 MPa
Division	Hose Products Division
Compatible Fitting	43 Series
Application	Petroleum Base Hydraulic Fluids, Lubricating Oils
Hose Inner Tube Material	PKR® Rubber
Inside Diameter	1-1/2 inch, 38 mm
Maximum Operating Temperature	150 °C, 302 °F
Minimum Operating Temperature	-50 °F, -46 °C
Minimum Bend Radius	20 inch, 500 mm
Outside Diameter	2 inch, 51 mm
Specifications Met	SAE 100R1, Type AT, SAE J1942, USCG HF, ABS
Cover Material	MSHA Approved, PKR® Rubber
Hose Reinforcement Material	1 Braid of Steel Wire
Weight Parker	1.46 kg/m, 0.98 lb/ft
Nominal Hose Inside Diameter	38 mm
Hose I.D. (size)	-24
