1-1/4" EPDM TUBE 6000 PSI

Parker's F42 hose is a phosphate-ester compatible hose that has a constant working pressure of 6000 PSI in all sizes and is specifically designed to resist aggressive airline hydraulic fluids.
Availability: In stock
SKU
F42-20
Lead Time
20

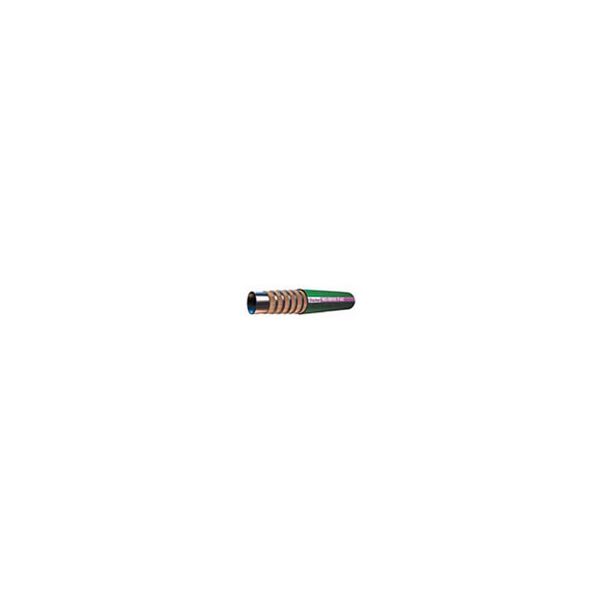

Parker’s F42 hose is a phosphate-ester compatible hose that has a constant working pressure of 6000 PSI in all sizes and is specifically designed to resist aggressive airline hydraulic fluids. The F42 hose is reinforced with four or six spiral steel wires and has an EPDM rubber cover making it extremely durable. Sizes range from ¾” to 1¼” in diameter to fit the requirements of various markets.

Markets:
• Ground Support Equipment
• Industrial

Features/Benefits:
• 6000 PSI in all sizes
• Leak-free assemblies when used with EPDM O-ring face seals and proper fittings
• Green EPDM cover for protection

Applications:
• Phosphate-ester base hydraulic fluids

Compatible Fittings:
• 79 series fittings
More Information
Media Petroleum Hydraulic Fluids
Maximum Operating Pressure 6000 psi, 42 MPa
Division Hose Products Division
Compatible Fitting 79 Series
Application Phosphate Ester
Hose Inner Tube Material Ethylene Propylene Diene Monomer (EPDM)
Inside Diameter 1-1/4 inch, 31.5 mm
Maximum Operating Temperature 80 °C, 176 °F
Minimum Operating Temperature -40 °F, -40 °C
Minimum Bend Radius 445 mm, 17.5 inch
Outside Diameter 50 mm, 1.970 inch
Cover Material Ethylene Propylene Diene Monomer (EPDM)
Hose Reinforcement Material 4 or 6 Spirals of Steel Wire
Weight Parker 3.96 kg/m, 2.66 lb/ft
Nominal Hose Inside Diameter 31 mm
Hose I.D. (size) -20
Cover Color Green
