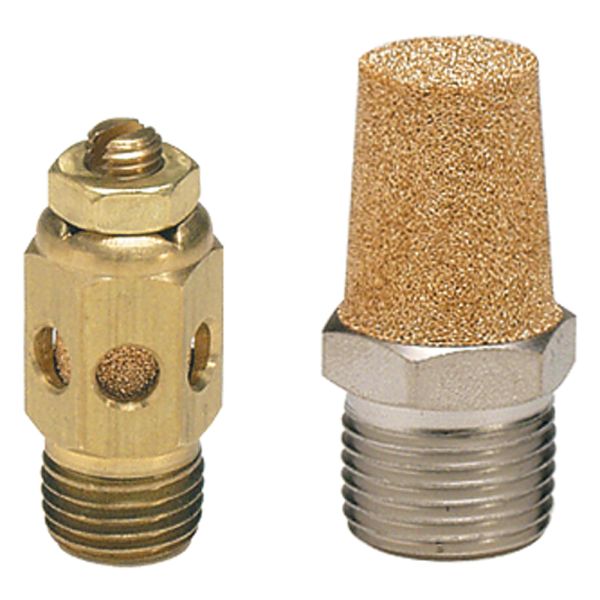

Muffler/flow controls provide an acceptable exhaust noise level and effectively meter exhaust. Installed in valve exhaust ports, they control cylinder piston speeds throughout a wide range. The adjusting screw cannot be accidently blown out and can be locked to maintain setting. Products are made of brass and bronze construction, clean with commonly used solvents.
Markets:
• Factory Automation
• Heavy Industries
Features/Benefits:
• Heavy duty sintered bronze construction
• Space savings
• Reduced decibel level of exhausted air
Applications:
• Industrial equipment
| Maximum Operating Pressure | 250 psig, 17.2 bar |
|---|---|
| Division | Pneumatic Division |
| Product Type | Muffler/Filter |
| Hex Size | 1-11/16 inch |
| Operating Temperature | 0° to +300° °F, -17° to +149° °C |
| Port Size | 1-1/4 inch |
| Overall Length | 1 to 3.69 inch |
| Port Type | NPT (Male Threaded) |
| Port Size (inch) | 1-1/4 |
| Type | EM Series Muffler / Filters |
