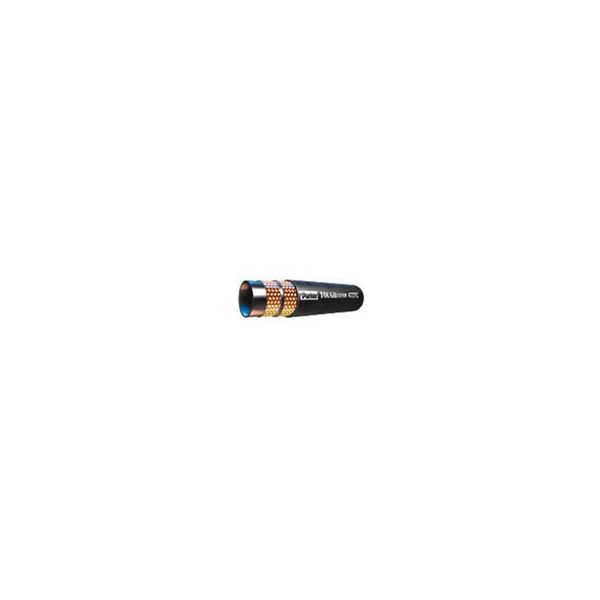

Parker’s 472TC hose is a hydraulic industry standard hose that has a pressure range of 1300-2250 PSI, which allows for one to meet the specifications of any task at hand.
Availability: In stock
SKU
472TC-20
Lead Time
20
Parker’s 472TC hose is a hydraulic industry standard hose that has a pressure range of 1300-2250 PSI, which allows for one to meet the specifications of any task at hand. The 472TC is designed, built, and tested to meet USCG, DNV, MSHA and ABS requirements. The two wire braided construction offers more flexibility than the standard spiral counterpart in order to fit your needs. The synthetic rubber inner tube provides a wide range of fluid compatibility.  Sizes range from 1-1/4” to 2” in diameter.

Markets:
• Transportation
• Military
• Agriculture
• Forestry
• Utility Equipment
• Personal Lift Equipment
• Waste & Refuse
• Material Handling
• Industrial

Features/Benefits:
• Synthetic rubber inner tube provides wide fluid compatibility
• ToughCover to prevent abrasion
• 1300-2250 PSI working pressure in different sizes

Applications:
• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:
• 43 series
More Information
Media Petroleum Hydraulic Fluids, Lubricants
Maximum Operating Pressure 2250 psi, 15.7 MPa
Division Hose Products Division
Compatible Fitting 43 Series
Application Petroleum Base Hydraulic Fluids, Lubricating Oils
Hose Inner Tube Material Synthetic Rubber
Inside Diameter 1-1/4 inch, 31.5 mm
Maximum Operating Temperature 212 °F, 100 °C
Minimum Operating Temperature -40 °F, -40 °C
Minimum Bend Radius 8-1/4 inch, 210 mm
Outside Diameter 1.790 inch, 45 mm
Specifications Met SAE J1942, DNV, ABS, HF Type B, USCG
Cover Material MSHA Approved, Synthetic Rubber Abrasion Resistant
Hose Reinforcement Material 2 Braids of Steel Wire
Weight Parker 1.34 lb/ft, 2.01 kg/m
Nominal Hose Inside Diameter 31 mm
Hose I.D. (size) -20
Hose Cover Type Tough Cover
