1/2"J1402AIRBRAKE

Be the first to review this product

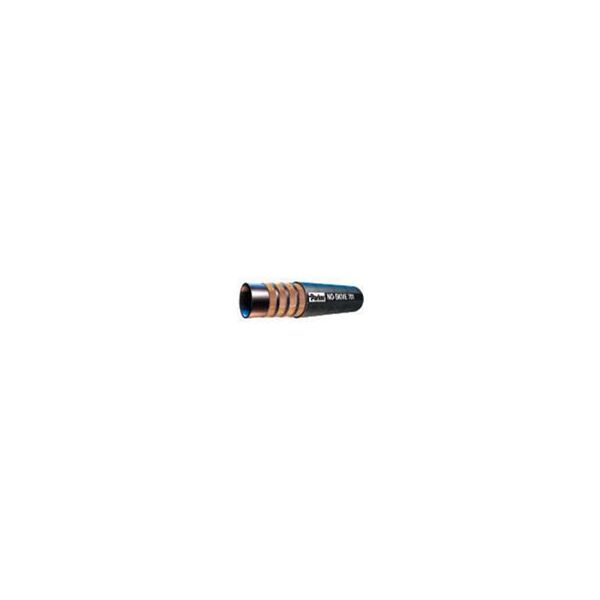

Parker’s 271 hose is a transportation air brake hose is capable of being crimped in the field as a replacement for factory-only made hose assemblies.

Availability: In stock

SKU

271-8

Available Qty

Lead Time

Details

Parker’s 271 hose is a transportation air brake hose is capable of being crimped in the field as a replacement for factory-only made hose assemblies. The 271 hose has a pressure range of 225 PSI in all sizes with a fiber braid reinforcement. The 271 hose is designed, built, and tested to meet SAE J1402 A and DOT FMVSS 106 AIR BRAKE - A specifications. Sizes range from 3/8” to ½” in diameter to fit the requirements of various markets.

Markets:
• Transportation
• Military
• Agriculture

Features/Benefits:
• 225 PSI in all sizes
• Field attachable or Parkrimp fittings to fit your specific needs

Applications:
• Air brake systems

Compatible Fittings:
• 25 series fittings

More Information

More Information
Media	Air (Compressed Air with traces of Oil)
Maximum Operating Pressure	225 psi, 1.6 MPa
Division	Hose Products Division
Compatible Fitting	25 Series
Application	Air Brake Systems
Hose Inner Tube Material	Synthetic Rubber
Inside Diameter	1/2 inch, 12.5 mm
Maximum Operating Temperature	212 °F, 100 °C
Minimum Operating Temperature	-50 °F, -46 °C
Minimum Bend Radius	2 inch, 50 mm
Outside Diameter	0.880 inch, 22 mm
Specifications Met	SAE J1402, Class A
Cover Material	Synthetic Rubber
Hose Reinforcement Material	1 or Multiple Braids of Fiber
Weight Parker	0.39 kg/m, 0.26 lb/ft
Nominal Hose Inside Diameter	12 mm
Hose I.D. (size)	-8
Hose Cover Type	Standard Cover
