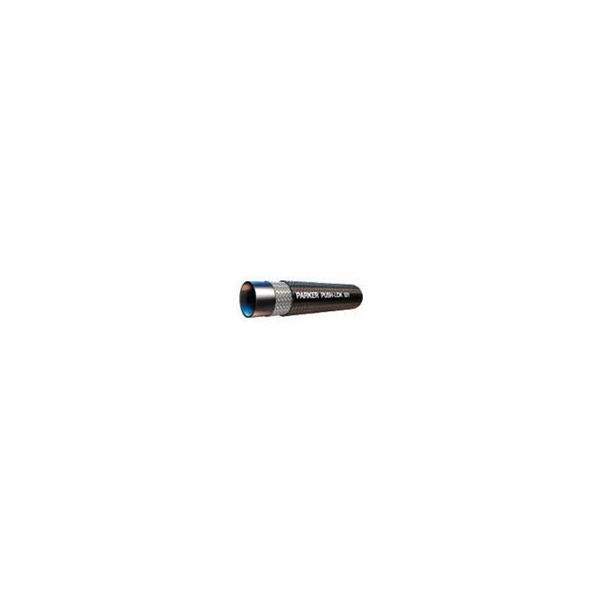

Parker's 821 hose is a higher pressure hose with a pressure range of 250-350 PSI, and is amongst the Push-Lok multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.
Availability: In stock
SKU
821-4
Lead Time
20
Parker's 821 hose is a higher pressure hose with a pressure range of 250-350 PSI, and is amongst the Push-Lok multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry. The 821 hose is designed with the unique seal of Push-Lok ensuring a reliable, durable, leak-free service.  Sizes range from ¼” to ¾” in diameter with the fullest range of color-coding to benefit operations.

Markets:
• Construction
• Utility Equipment
• Machine Tool
• Ground Support Equipment
• Industrial
• Automotive

Features/Benefits:
• 250-350 PSI working pressure in different sizes
• Easy assemblies that can be made in seconds, saving valuable time and cost
• Organization with Parker's exclusive color-coding system
• Unique seal for a durable leak-free service

Applications:
• Petroleum base hydraulic fluid and lubricating oils
• Pneumatic
• Antifreeze solutions

Compatible Fittings:
• 82 series fittings

More Information
Media Petroleum Hydraulic Fluids, Air (Compressed Air with traces of Oil), Lubricants, Coolants
Maximum Operating Pressure 350 psi, 2.4 MPa
Division Hose Products Division
Compatible Fitting 82 Series
Application Petroleum Base Hydraulic Fluids, Antifreeze Solutions, Lubricating Oils, Pneumatics
Hose Inner Tube Material Synthetic Rubber
Inside Diameter 6.3 mm, 1/4 inch
Maximum Operating Temperature 158 °F (Air), 185 °F (Water), 70 °C (Air), 85 °C (Water), 100 °C (Oil), 212 °F (Oil)
Minimum Operating Temperature -40 °C (Oil)
Vacuum Pressure Rating 28 inch-Hg, 711 mm-Hg
Minimum Bend Radius 64 mm, 2-1/2 inch
Outside Diameter 12.7 mm, 0.500 inch
Specifications Met n/a
Design Factor 4:1
Hose Reinforcement Material 1 Braid of Fiber
Weight Parker 0.06 lb/ft, 0.09 kg/m
Nominal Hose Inside Diameter 6 mm
Hose I.D. (size) -4
