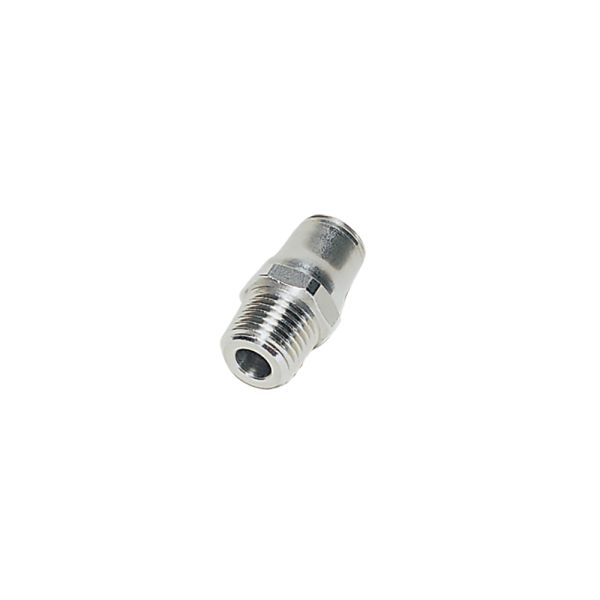

1/4 X 1/4 NPT MALE CONNECTOR

Details

Parker Legris has developed this range of stainless steel fittings for conveying corrosive fluids in aggressive environments. The range provides two complementary levels of corrosion resistance and a hygienic external design.

PRODUCT ADVANTAGES:

> High Resistance to Aggressive Environments
- Excellent for conveying aggressive ﬂ uids
- Hygienic external design for reducing retention zones
- Easy cleaning in situ
- Proven gripping technology

> Wide Range of Applications
- Perfect for permanent contact with foodstuffs
- Compatible with frequent sterilization
- Excellent in saline environments and outdoor applications
- Resistant to industrial cleaning agents and detergents
- Compatible with polymer and grooved stainless steel tubing

- One ﬁtting for many applications: optimised stock management

- Hydrogen

> Reliability & Safety
- All-metal product allowing detection of all components
- Full bore, with minimal pressure drop
- Resistant to hammering, mechanical shock and impulse
- Manual connection and disconnection, no tools required
- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- IP 51 bulkhead: complete protection against ingress in food and non-food zones

PRODUCT TYPES:
- Stud Fittings
- Stud Standpipe
- Cartridge
- Stud Elbow
- Compact Stud Elbow
- Stud Branch Tee
- Stud Run Tee
- Equal Straight Connector
- Equal Stud Elbow
- Equal Tee
- Equal Bulkhead Connector
- Plug-In Reducer
- Blanking Plug
- Disconnection Tool

APPLICATIONS:
- Food Process
- Paper Industry
- Petrochemical
- Pharmaceutical
- Chemical

- Medical

- Hydrogen

TECHNICAL CHARACTERISTICS:
- Fluids: All fluids compatible with the fittings and tubing component materials
- Materials: Stainless Steel 316L, FKM
- Pressure: Vacuum to 30 bar
- Temperature: -25°C to +150°C
- Ø metric: 4-12 mm
- Ø inch: 3/16" to 1/2"

REGULATIONS:
- ISO 14743 Pneumatic transmissions, push-in fittings for thermoplastic tubing
- DI: 97/23/EC (PED)
- DI : 2002/95/EC (RoHS), 2011/65/EC
- DI: 94/9/EC (ATEX)
- RG : 1907/2006 (REACH)
- UL94 V-0: Seal
- RG: 21CFR (FDA)
- RG: 1935/2004/EC
- USDA NSF H1: Grease

TECHNOLOGIES:
- 316L Stainless Steel Fittings
- Hygienic Fittings
- Bulkhead Connectors
- Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors
- Swivel Fittings

More Information

More Information
Maximum Operating Pressure	30 bar, 435 psi
Division	Low Pressure Connectors Europe Division
Application	Chemical Transfer, Food Processing, Pharmaceutical, Petrochemicals, Medical Equipment, Paper Industry
Maximum Operating Temperature	150 °C, 302 °F
Minimum Operating Temperature	-25 °C, -13 °F
Vacuum Pressure Rating	755 mm-Hg, 1 bar, 14.5 psi
Product Style	Stud Fittings
Specifications Met	PED DI: 97/23/EC, RoHS DI: 2002/95/EC, REACH DI: 1907/2006, FDA 21 CFR, ATEX DI: 94/9/EC, USDA NSF H1 (Grease), EC 1935/2004, UL 94 V-0 (Seal), RoHS DI: 2011/65/EC, ISO 14743 (Pneumatic Transmissions)
Product Type	Push-to-Connect Fittings
Weight Parker	0.018 kg
Body Material	Stainless Steel AISI 316L
Shape	Straight
Materials of Construction	Stainless Steel AISI 316L (Nut), Stainless Steel AISI 316L (Collet)
Connection 2 Size	1/4", 1/4 inch Tube O.D.
Connection Type	Tube to Port
Connection 1 Size	1/4 inch Tube O.D., 1/4" (O.D.)
Seal Material	FKM
Brand	Legris
Connection 2 Type	Male, Male NPT, NPT
For Fluid Type	Water, Air, Other Fluids: Please Consult Us
Hex Size	14 mm
Industry	Food & Beverage, Chemicals Processing, Pharmaceuticals, Medical
Connection 1 Type	Tube
Product Series	LF 3800
Configuration	Tube to Port
Technology	Fluid & Gas Handling, Pneumatics
Quantity per Box	2
