3/4

3/4"SAE100R12 HOSE

1/2

1/2"SAE R12 TUFF CVR HOSE

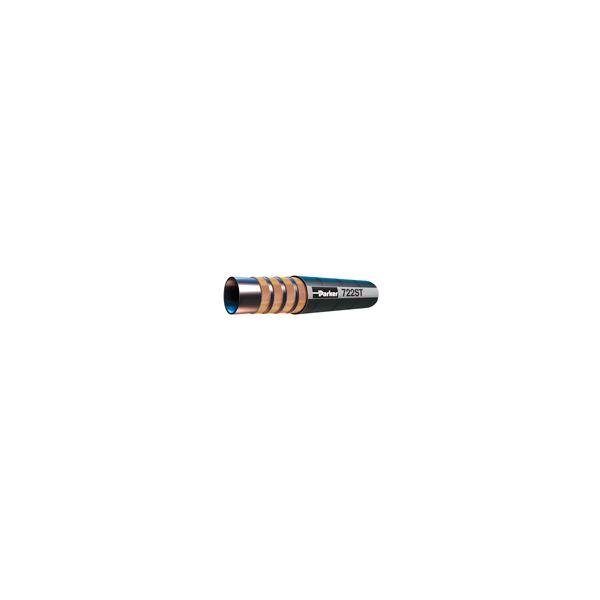

1"SAE100R12 SUPERTUF HOSE

With 4,000 PSI constant working pressure hoses, half SAE bend radius, and three cover options, Parker’s 722 GlobalCore hose delivers maximum performance and efficiency.
Availability: In stock
SKU
722ST-16
Lead Time
20
Parker's 722 hose, within the GlobalCore product line, was designed to deliver consistency and reliability with a constant working pressure of 4,000 PSI in all sizes. It is light, durable, and easily bent making installation easier and quicker. The 722 Hose is designed, built and tested to the ISO 18752 performance specifications. Sizes range from 3/8” to 1” in diameter with different cover options available for various markets

Markets:
• Transportation
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Utility Equipment
• Waste & Refuse

Features/Benefits:
• Standard, ToughCover or SuperTough cover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex
• 4,000 PSI constant working pressure in all sizes
• 4-spiral construction for longer life in high-impulse, heavy-duty cycle applications

Applications:
• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:
• 43 series fittings

More Information
Media Petroleum Hydraulic Fluids, Lubricants
Maximum Operating Pressure 4000 psi, 28 MPa
Division Hose Products Division
Compatible Fitting 43 Series
Application Petroleum Base Hydraulic Fluids, Lubricating Oils
Hose Inner Tube Material Synthetic Rubber
Inside Diameter 25 mm, 1 inch
Maximum Operating Temperature 257 °F, 125 °C
Minimum Operating Temperature -40 °F, -40 °C
Minimum Bend Radius 150 mm, 6 inch
Outside Diameter 1.5 inch, 37.8 mm
Specifications Met ISO 18752
Cover Material Synthetic Rubber Super Abrasion Resistant
Hose Reinforcement Material 4 Spirals
Weight Parker 1.99 kg/m, 1.34 lb/ft
Nominal Hose Inside Diameter 25 mm
Hose I.D. (size) -16
Hose Cover Type SuperTough, SuperTough Cover
