HOSE
STAINLESS BRAID TEF
2-1/2" SAE100R4 HOSE

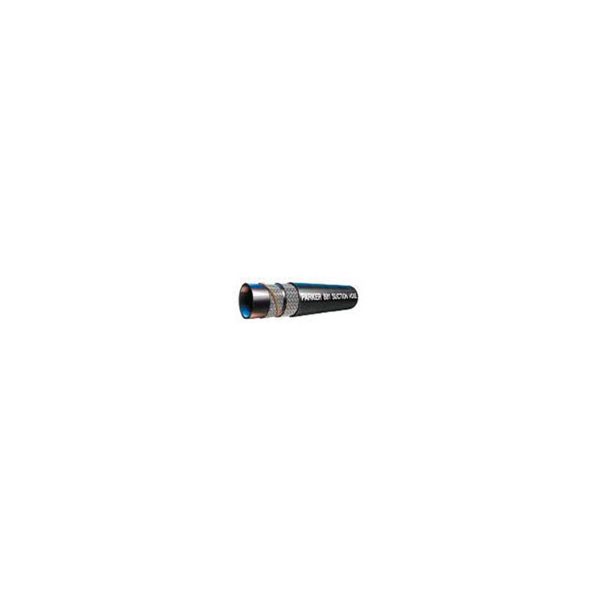

Parker's 881 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.
Parker's 881 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications. The 881 hose is designed, built, and tested to meet SAE 100R4 performance specifications. Sizes range from ¾” to 2-½” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• RV & Bus
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Railroad
• Utility Equipment
• Personnel Lift Equipment
• Machine Tool
• Oil Field Service
• Waste & Refuse
• Material Handling
• Marine
• Paving & Road Maintenance
• Ground Support Equipment
• Industrial
• Mining
Features/Benefits:
• 62-300 PSI working pressure in different sizes
• SAE J517 100R4 / SAE J1942 Performance Specifications
• Oil and weather-resistant synthetic rubber cover, MSHA accepted
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings
• 81 series fittings
• 88 series fittings
More Information
Media
Petroleum Hydraulic Fluids, Lubricants
Maximum Operating Pressure
62 psi, 0.4 MPa
Division
Hose Products Division
Compatible Fitting
43 Series, 81 Series, 88 Series
Application
Petroleum Base Hydraulic Fluids, Lubricating Oils
Hose Inner Tube Material
Synthetic Rubber
Inside Diameter
63.5 mm, 2-1/2 inch
Maximum Operating Temperature
257 °F, 125 °C
Minimum Operating Temperature
-40 °F, -40 °C
Vacuum Pressure Rating
28 inch-Hg, 95 kPa
Minimum Bend Radius
14 inch, 356 mm
Outside Diameter
3 inch, 76.2 mm
Specifications Met
SAE J1943, USCG HF, SAE 100R4
Cover Material
Synthetic Rubber, MSHA Approved
Design Factor
4:1
Hose Reinforcement Material
Multiple Braids of Fiber with Wire Helix
Weight Parker
1.82 lb/ft, 2.71 kg/m
Nominal Hose Inside Diameter
63 mm
Hose I.D. (size)
-40
