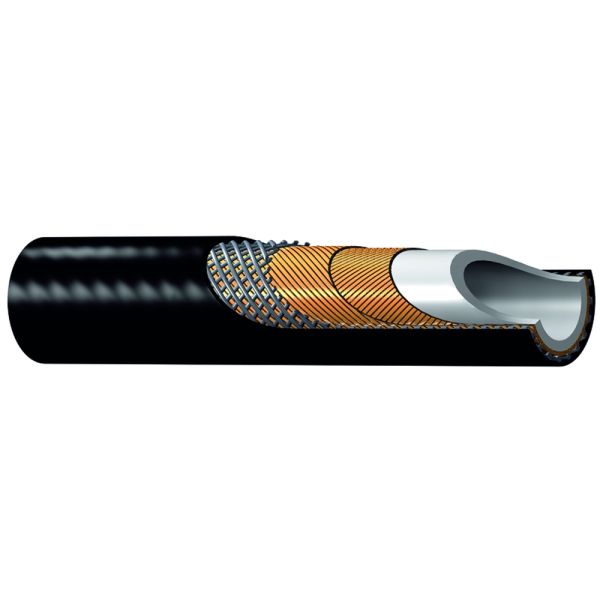

Parker Polyflex High Pressure 2380N Hoses are developed for High and Ultra High Pressure applications.
The excellent handling increases operator efficiency and long service life reduces costly down times.
Superior safety standards are applied for the benefit of the operator.
Markets:
• Industrial
• Marine
• Water jet cutting (only hoses > 2000 bar)
• All markets requiring pressures over 700 bar for their cleaning and cutting applications
Features/Benefits:
• Replaces steel pipe where flexibility is important
• A manufacturing procedure applying water pressure to produce complex hollow parts made from pipe-like basic materials
• Compact design hereby handling and space improvements
• Compliant with DIN EN 1829-2 thus legal backup and approved safety hazard control
• Excellent operator safety as a result of highest quality standards which are met
• Design factor: 4:1
Applications:
• Industrial cleaning
• High pressure service for the construction and shipbuilding industry
• For working pressure up to 75 MPa (10.875 psi)
Technical specifications:
• Core tube: Polyamide
• Pressure reinforcement: Two spiral layers and two open spiral layers of high tensile steel wire
• Cover: Polyurethane, DN32: Polyamide
• Standard colour: black
• Temperature range: -40°C up to +100°C
| Media | Petroleum Hydraulic Fluids |
|---|---|
| Maximum Operating Pressure | 10150 psi, 700 bar, 70 MPa |
| Division | Polymer Hose Division Europe |
| Compatible Fitting | 8X Series |
| Application | Hydraulics |
| Hose Inner Tube Material | Polyamide (PA) |
| Inside Diameter | 1/4 inch, 6.4 mm |
| Maximum Operating Temperature | 212 °F, 100 °C |
| Size | -4 |
| Minimum Operating Temperature | -40 °F |
| Minimum Bend Radius | 70 mm, 2.756 inch |
| Outside Diameter | 13.4 mm, 0.528 inch |
| Specifications Met | n/a |
| Cover Material | Polyurethane |
| Design Factor | 4:1 |
| Hose Reinforcement Material | 2 Spirals and 2 Open Spirals of High Tensile Steel Wire |
| Product Type | Hydraulic Hose, Transfer Hose, Water Blast Hose |
| Weight Parker | 0.18 lb/ft, 0.27 kg/m |
| Materials of Construction | Thermoplastic |
| Brand | Parker |
| Maximum Working Pressure (psi) | 150, 10 |
| Hose I.D. (inch) | 1/4" |
| Industry | Marine, General Industrial |
| Technology | Fluid & Gas Handling |
| Color | Black |
| Cover Color | Black |
| Maximum Working Pressure (MPa) | 70.0 |
