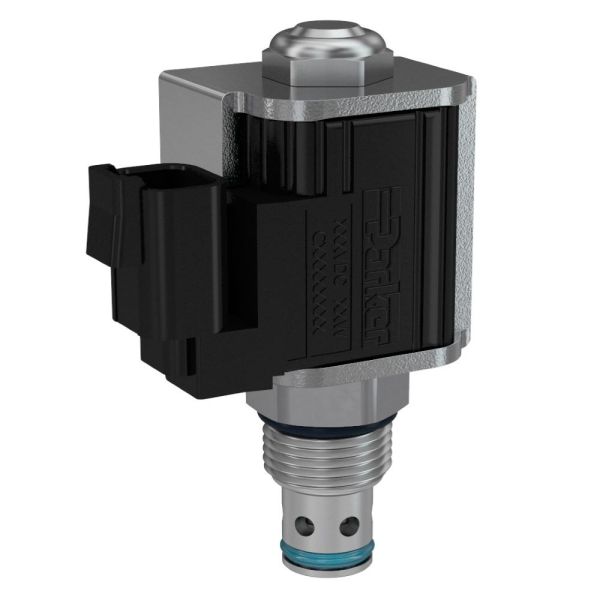

GLOBAL - Parker’s direct acting 2-way, 2-position spool-type solenoid valves cover a range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.
Parker’s direct acting 2-way, 2-position spool-type solenoid valves feature a proven design that ensures reliable and predictable performance with low pressure drop and minimized hysteresis. These valves can operate with hydraulic system flows as high as 75 lpm (20 gpm) and pressures up to 350 bar (5000 psi) with normally-open or normally closed configurations available. Parker’s 2-way, 2-position spool-type solenoid valves are ideal for on/off applications that don’t necessarily require low poppet style leakage, but instead easy solenoid driven directional controls. These valves can be used on a wide range of machinery within the mobile, industrial, or manufacturing markets.
Markets: • Aerial • Agriculture • Construction • Material Handling • Miscellaneous Industrial • Miscellaneous Manufacturing • Miscellaneous Mobile
Features/Benefits: • Replaceable one-piece coils with low amp draw • High flow capacity • Manual override options • Standard bodies and cavities • No dynamic seals • Low hysteresis • All external parts zinc plated
Additional Technical Insight: Direct acting spool valves are fast to respond to coil voltage and will block flow in both directions. Some leakage will be present due to spool clearances so please consider Parker’s 2-way Poppet Valves if leakage less than 5 drops per minute is required. Even though flow is bi-direction, due to flow forces, the preferred flow path is from the side of the cartridge (port 2) to the nose (port 1).
