main product photo
Loading...
HP 100R8 NON-COND PLST HOSE

HP 100R8 NON-COND PLST HOSE

3/4

3/4" R12 HOSE

3/4"HI-TEMP 100R6

Be the first to review this product

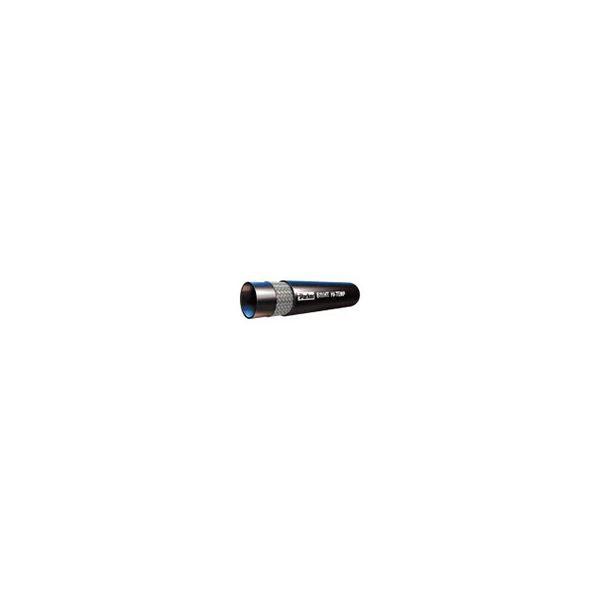

Parker's 611HT hose is a transportation hose that has a working pressure range of 300-400 PSI which is designed for high temperature applications.
Availability: In stock
SKU
611HT-12
Lead Time
20
Add to Wish List
Parker's 611HT hose is a transportation hose that has a working pressure range of 300-400 PSI which is designed for high temperature applications. The 611HT hose is designed, built, and tested to meet SAE J517 100R6 / EN 854 Type R6 specifications. Sizes range from ¼” to ¾” in diameter to fit the requirements of various markets.

Markets:
• Transportation
• Military
• Agriculture

Features/Benefits:
• 300-400 PSI working pressure in different sizes
• Temperature range of -55 degrees Fahrenheit to 302 degrees Fahrenheit
• SAE J517 100R6 / EN 854 Type R6 certifications

Applications:
• Petroleum base hydraulic fluids and lubricating oils, diesel fuels and antifreeze solutions

Compatible Fittings:
• HY series fittings


More Information
Media Petroleum Hydraulic Fluids, Lubricants, Coolants, Fuels - Check fuel type with our catalogue chart.
Maximum Operating Pressure 300 psi, 2.1 MPa
Division Hose Products Division
Compatible Fitting HY Series
Application Petroleum Base Hydraulic Fluids, Antifreeze Solutions, Lubricating Oils, Diesel Fuels
Hose Inner Tube Material PKR® Rubber
Inside Diameter 3/4 inch, 18.8 mm
Maximum Operating Temperature 150 °C, 302 °F
Minimum Operating Temperature -55 °F, -48 °C
Minimum Bend Radius 150 mm, 6 inch
Outside Diameter 1 inch, 25.4 mm
Specifications Met EN 854, Type R6, SAE J517 and 100R6
Cover Material Synthetic Rubber MSHA approved
Hose Reinforcement Material 1 Braid of Fiber
Weight Parker 0.25 lb/ft, 0.36 kg/m
Hose Inside Diameter -12
Nominal Hose Inside Diameter 18 mm
Hose Cover Type Synthetic Rubber MSHA Accepted
