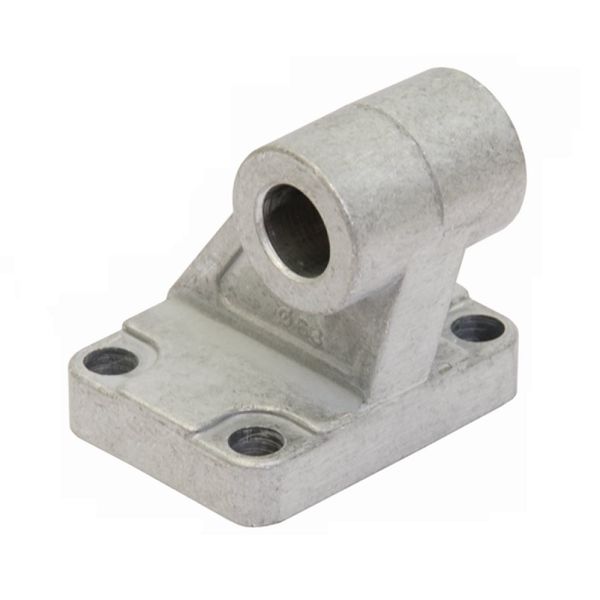

40MM PIVOT BRKT W/RB *

The AB7 Pivot Bracket with rigid bearing provides articulated movement of ISO 15552 and ISO 21287 pneumatic cylinders, with bore szes from Ø32mm to Ø320mm. Suitable for use with P1D, P1F and P1P-series pneumatic cylinders.

Markets:
▪ Industrial
▪ Food and Beverage
▪ Packaging
▪ Factory Automation
▪ Processing
▪ Transportation

Features/Benefits:
▪ Permits flexible mounting of pneumatic cylinder
▪ Cylinder mounting according to ISO 15552
▪ Pivot bracket with rigid bearing AB7 can be combined with clevis bracket MP2
▪ Material:
    - Bracket : Aluminium
    - Bearing : Steel and PTFE
▪ Corrosion resistant design
▪ For product series P1D, P1F and P1P

Applications:
▪ Installation of Pneumatic Cylinders


Performance Characteristics:
For cylinder types : P1D | P1F | P1P
Bore Size : 32mm | 40mm | 50mm | 63mm | 80mm | 100mm | 125mm | 160mm | 200mm | 250mm | 320mm
Certificates : For ISO 15552 | ISO 21287 Cylinders
Material : Aluminium
Corrosion Resistant : Yes
