63MM FT BRKT P1*

Be the first to review this product

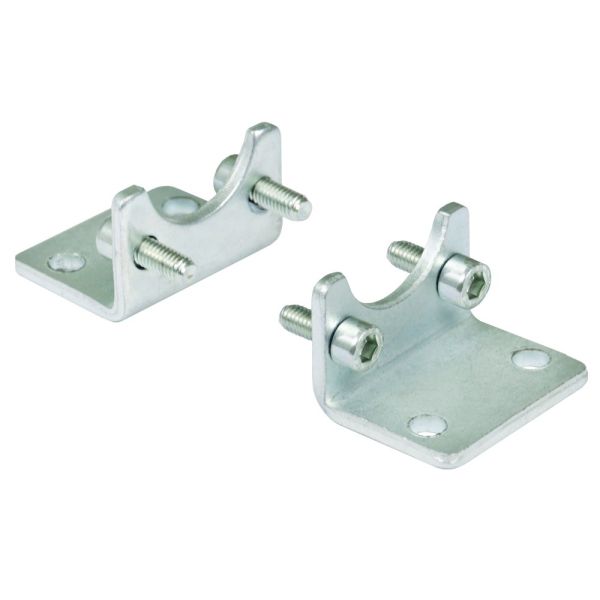

Foot bracket mountings type MS1 in surface treated steel for ISO 15552 / VDMA and ISO 21287 cylinders bores Ø20mm to Ø320mm. Supplied in pairs and fitted to the front and rear of the actuator with the included zinc plated screws.

Availability: In stock

SKU

P1C-4NMF

Available Qty

Lead Time

Details

Foot mounting brackets, type MS1, complete with screws for the mounting of ISO 15553 cylinders including the P1F and P1P Series. Supplied in pairs and suitable for attachment to the front or rear of the cylinder.

Markets:

• Miscellaneous Industrial

• Miscellaneous Manufacturing

• Miscellaneous Processing

Features/Benefits:

• ISO Standard for universal mounting / interchangeability

• Surface treated steel for corrosion resistance

• Supplied complete with screws

Applications:

• Cylinder mounting

Performance Characteristics

For cylinder types: P1D | P1P

Bore size (Ø): 20mm | 25mm | 32mm | 40mm | 50mm | 63mm | 80mm | 100mm | 125mm | 160mm | 200mm | 250mm | 320mm

Certificates: ISO 15552 (32mm - 320mm) | For ISO 21287 (20mm - 100mm) cylinders

Material: Surface treated steel

Corrosion resistant: Yes

More Information

More Information
Division	Electric Motion and Pneumatic Division - Europe
Product Type	P1C-4NMF : Foot Bracket MS1 - 63mm Bore Size for P1D
Bore Diameter	63 mm
For Use With	P1D
