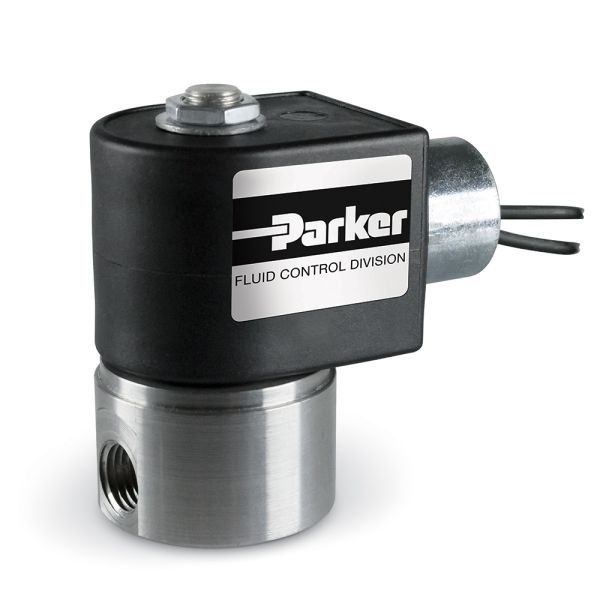

Parker 2-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 2.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.
Availability: In stock
SKU
71215SN2MN00N0C111C2
Lead Time
45

Parker's 2-Way Normally Closed 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases. These valves are available in stainless steel and brass construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.

Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation

Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff

Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment

More Information
Media Liquids and Gases, General Purpose for Air
Division Fluid Control Division
Body Material Stainless Steel, Stainless
Seal Material NBR
Valve Type 2-Way
Minimum Fluid Temperature 0 °F
Maximum Fluid Temperature 185 °F
Product Series 7000 Series
Actuation Type Direct Acting
Function Normally Closed (NC)
Port Size 1/4 inch
Port Type NPT
Input Voltage 24.0 VDC
Coil Type 18" Leads, 1/2" Conduit
Number of Ports 2
Maximum Pressure Differential 150 psi (DC)
Power Consumption 10 W (DC)
Minimum Pressure Differential 0 psi
Coil Specifications Met NEMA 4X
Orifice 2 Size n/a
Flow Coefficient 2 n/a
Voltage (V) 24 VDC
Power (Watts) 10 Watts (DC)
Orifice 1 Size 1/8 inch
Flow Coefficient 1 0.28 Cv
Orifice 1 Size (inch) 1/8
Flow Factor 1 (Cv) 0.28
