71216SN2BL00N0C322C2*S4244

Be the first to review this product

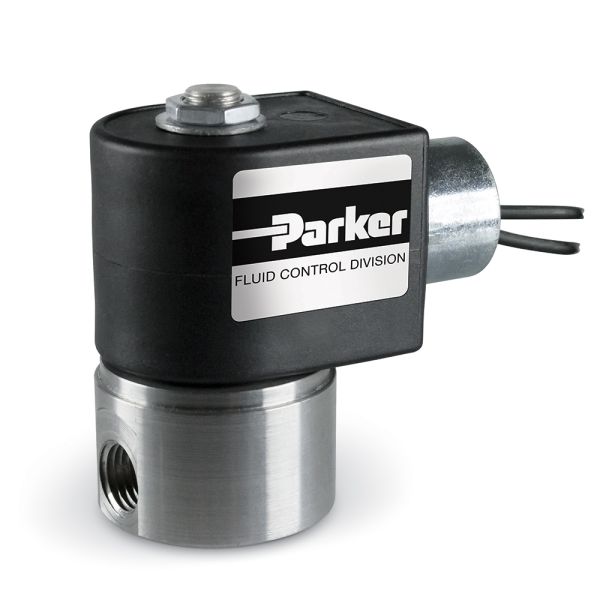

These unique needle-in-seat high pressure valves direct-acting valves deliver long life at high pressures thanks to robust fundamentals and technopolymer sealing surfaces. These valves must be mounted upright; with solenoid coils vertical and upright

Availability: In stock

SKU

71216SN2BL00N0C322C2

Available Qty

Lead Time

Details

2-Way direct-acting high pressure valves are generally installed where high pressure requirements otherwise require the use of piston valves and/or valves with more robust seals such as PTFE and Ruby discs. These valves must be mounted upright; with solenoid coils vertical and upright.

More Information

More Information
Media	General Purpose
Division	Fluid Control Division
Specifications Met	n/a
Body Material	Stainless Steel
Seal Material	NYLON
Maximum Ambient Temperature	77.0 °F, 77.0
Maximum Fluid Temperature	185.0 °F, 185.0
Actuation Type	Direct Acting
Function	2-Way, Normally Closed
Port Size	1/4", 1/4 inch
Port Type	NPT
Installation	IOM 7206
Orifice Size	1/32 inch, 1/32
Input Voltage	24.0, 24.0 VDC
Coil Type	C322C2
Maximum Pressure Differential	3000.0 psi, 3000.0
Ingress Protection Rating	NEMA 4, 4X
Insulation Class	Class H
Power Consumption	22, 22.0 W
Minimum Pressure Differential	0.0 psi, 0.0
Main Flow Coefficient	0.021 Cv, 0.021
Valve Configuration	2 Way, Normally Closed
Preventive Maintenance Kit	N/A
