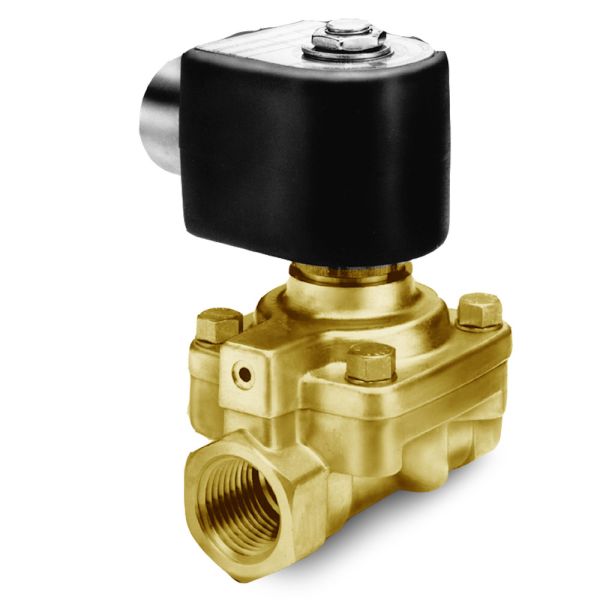

Parker 2-Way Normally Closed, 1-1/2" NPT Solenoid Valves provide operating pressures up to 230 PSI and flow factors up to 29 CV's. They offer brass bodies, multi-mount options and Class F or H or NEMA 4X, 7 or 9 coils for all flow control applications.
Availability: In stock
SKU
7321GBN88N00N0C111P3
Lead Time
30

Parker's 2-Way Normally Closed 1-1/2" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases. These valves are available in brass construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.



Markets:

• Commercial Equipment

• Food & Beverage

• Industrial Automation

• Oil & Gas

• Process Control

• Transportation



Features/ Benefits:

• High Quality Standards of Skinner® and Gold Ring™ Brand

• Modular Design

• Long Life

• Tight Shutoff



Applications:

• Instrumentation Equipment

• Analyzers and Diagnostic Equipment

• Medical and Dental Equipment

• Portable Welding Equipment

• Spraying Equipment

• Lubrication Equipment

• Beverage Dispensing & Vending machines

• Oil Burners

• Humidification and Misting Equipment

• Mobile Fuel Shut Off

• Textile and Dry Cleaning Equipment

• Commercial Dishwashers

• Commercial Laundry and Dryers

• Air Horns

• Pneumatic Fan Clutch

• Irrigation Equipment

More Information
Media Liquids and Gases, General Purpose for Air
Division Fluid Control Division
Body Material Brass
Seal Material NBR
Valve Type 2-Way
Minimum Fluid Temperature 0 °F
Maximum Fluid Temperature 185 °F
Product Series 7000 Series
Actuation Type Mechanical, Manual
Function Normally Closed (NC)
Port Size 1-1/2 inch
Port Type NPT
Input Voltage 110/50-120/60
Coil Type 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Number of Ports 2
Maximum Pressure Differential 230 psi
Power Consumption 10 W
Minimum Pressure Differential 5 psi
Coil Specifications Met NEMA 4X
Orifice 2 Size n/a
Flow Coefficient 2 n/a
Voltage (V) 110/50-120/60
Power (Watts) 10 Watt (AC)
Maximum Pressure Differential (psi) 230 psi (AC)
Orifice 1 Size 1-9/16 inch
Flow Coefficient 1 29 Cv
Orifice 1 Size (inch) 1-9/16
Flow Factor 1 (Cv) 29
