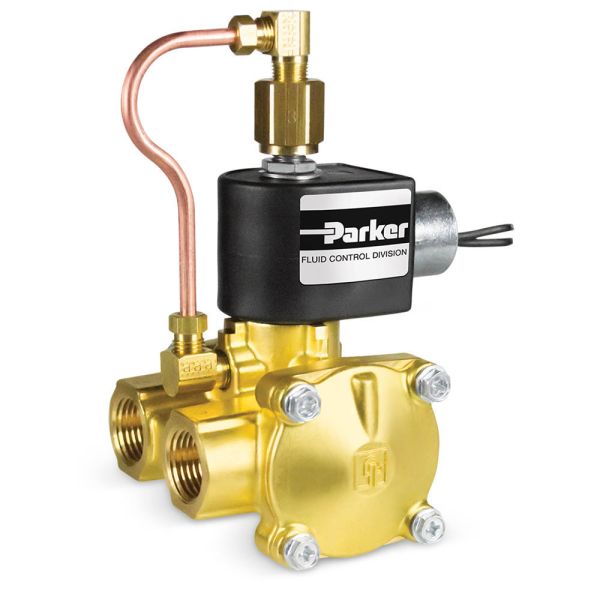

Parker's 3-Way Normally Closed, Direct Acting 3/8" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Single acting spring return cylinder control
• Selection or diversion of process media
• HVAC damper control
• Instrumentation Equipment
• Pneumatic positioning
• Automatic dispensing equipment
• Gas sampling
• Small compressors
• Water treatment
• Air dryers
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
| Media | Liquids and Gases, General Purpose for Air |
|---|---|
| Division | Fluid Control Division |
| Body Material | Brass |
| Seal Material | NBR |
| Valve Type | 3-Way |
| Minimum Fluid Temperature | 0 °F |
| Maximum Fluid Temperature | 185 °F |
| Product Series | 7000 Series |
| Actuation Type | Mechanical, Manual |
| Function | Normally Closed (NC) |
| Port Size | 3/8 inch |
| Port Type | NPT |
| Input Voltage | 110/50-120/60 |
| Coil Type | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
| Number of Ports | 3 |
| Maximum Pressure Differential | 180 psi (AC) |
| Power Consumption | 10 W (AC) |
| Additional Options | Exhaust Adapter Nut |
| Minimum Pressure Differential | 10 psi |
| Coil Specifications Met | NEMA 4X |
| Exhaust Orifice Size | n/a |
| Orifice 2 Size | n/a |
| Main Orifice Size | 3/8 inch |
| Exhaust Flow Coefficient | n/a |
| Main Flow Coefficient | 2.1 Cv |
| Flow Coefficient 2 | n/a |
| Voltage (V) | 110/50-120/60 |
| Power (Watts) | 10 Watt (AC) |
| Maximum Pressure Differential (psi) | 180 psi (AC) |
| Mechanical Option | Exhaust Adapter Nut |
