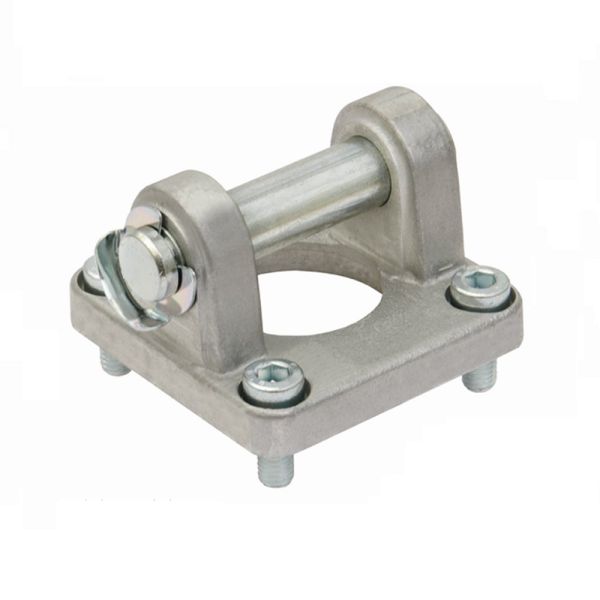

Clevis bracket MP2 for articulated movement of ISO 15552 and ISO 21287 cylinders bores Ø32mm to Ø320mm. Fitted to the actuator using the mounting screws supplied.
The Clevis Bracket MP2 permits articulated movement of ISO 15552 and ISO 21287 pneumatic cylinders with bore sizes from Ø32mm to Ø320mm. Suitable for use with P1D, P1F and P1P-series pneumatic cylinders.
Features/Benefits: ▪ Permits flexible mounting of pneumatic cylinder ▪ Cylinder mounting according to ISO 15552 ▪ Clevis bracket MP2 can be combined with clevis bracket MP4 and pivot bracket AB7 ▪ Material: - Bracket : Aluminium - Pin : Zinc coated steel - Circlip : Spring steel - Mounting Screws : According to DIN 912: Zinc plated steel 8.8. ▪ Corrosion resistant design ▪ For product series P1D, P1F and P1P ▪ Supplied complete with mounting screws for attachment to cylinder
Applications: ▪ Installation of Pneumatic Cylinders
