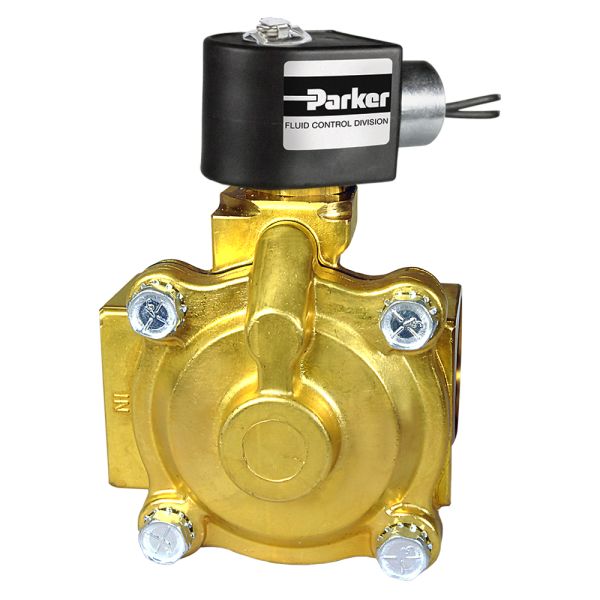

| Media | General Purpose |
|---|---|
| Division | Fluid Control Division |
| Specifications Met | CE - Low Voltage, EMC, UL, CSA Listed General Purpose Valve |
| Body Material | Brass |
| Seal Material | FKM |
| Maximum Ambient Temperature | 130.0 °F, 130.0 |
| Maximum Fluid Temperature | 180.0 °F, 180.0 |
| Actuation Type | Internally Piloted |
| Function | 2-Way, Normally Closed |
| Port Size | 1-1/4 inch, 1-1/4" |
| Port Type | NPT |
| Installation | IOM 7235 |
| Orifice Size | 1-1/8 inch, 1-1/8 |
| Input Voltage | 110/50 VAC, 120/60, 110/50 |
| Coil Type | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) |
| Maximum Pressure Differential | 150 (100 Light Oil) psi, 150 (100 Light Oil) |
| Ingress Protection Rating | NEMA 4, 4X |
| Insulation Class | Class H |
| Power Consumption | 6.0 W, 6.0 |
| Minimum Pressure Differential | 5.0 psi, 5.0 |
| Main Flow Coefficient | 15.0 Cv, 15.0 |
| Valve Configuration | 2 Way, Normally Closed |
| Preventive Maintenance Kit | 20F24C2272AAHR |
