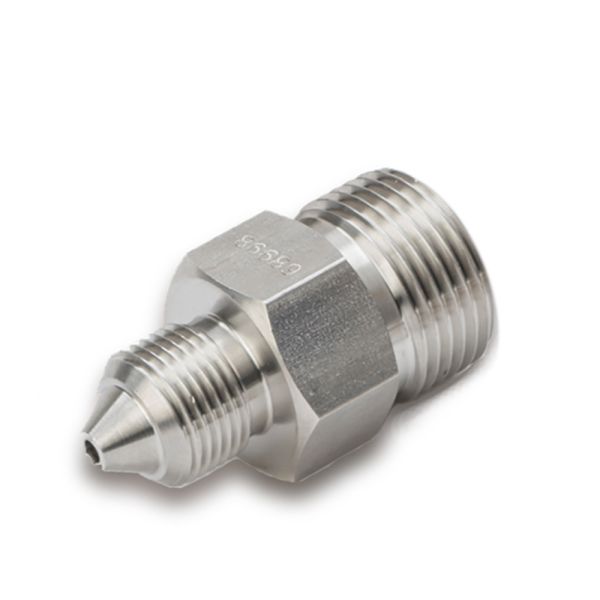

ADAPTOR 9/16" UNFX3/8" HP

These fitting adapters connect to Type "M" Swivel end fittings and seal with a 58° cone.
Availability: In stock
SKU
YAY6-6-6C
Lead Time
7
Parker's Type "M" fitting adapters provide a quick and easy connection for hose assemblies. These are our highest rated adapters - rated to the full working pressure of the hose or hose end connection. Type "M" fitting adapters are versitile and ideal for any application where ease of connection and working pressure are important.

Markets:
• Waterblast / Water Jetting
• Hydraulics
• Oil & Gas

Features/Benefits:
• Provides a swivel for quick and easy connection
• Internal threads and seal are protected from external damage
• Non-rotating seal reduces galling and minimizes tightening torque
• Can be adapted to almost any connection required

Applications:
• Any system requiring Type "M" connections for hose assemblies
More Information
Maximum Operating Pressure 414 MPa, 60000 psi
Division Parflex Division
Materials of Construction Stainless Steel AISI 316
Connection 2 Thread Size 3/4"-16 UNF
Connection 2 Type Male High Pressure
Hex Size 0.75 inch, 19.05 mm
Connection 1 Type Male Type "M"
Connection 1 Thread Size 9/16"-18 UNF
Overall Length 1.75 inch, 44.45 mm
