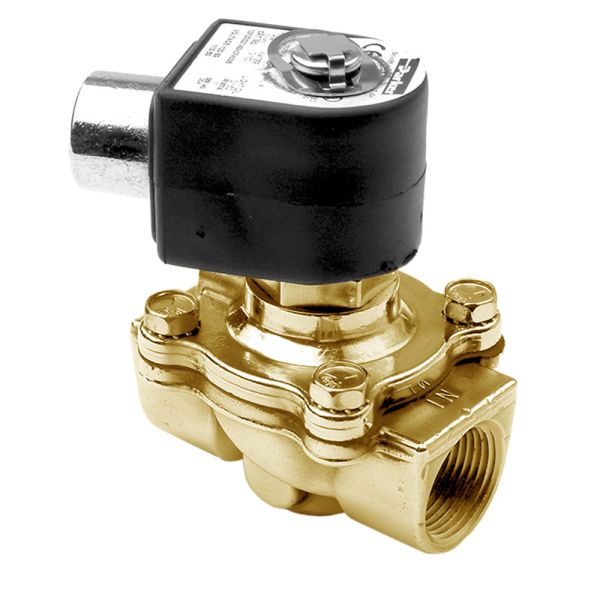

| Media | General Purpose |
|---|---|
| Division | Fluid Control Division |
| Specifications Met | EMC, UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage |
| Body Material | Brass |
| Seal Material | NBR |
| Maximum Ambient Temperature | 130.0 °F, 130.0 |
| Maximum Fluid Temperature | 180.0 °F, 180.0 |
| Actuation Type | Direct Lift |
| Function | 2-Way, Normally Closed |
| Port Size | 1/2, 1/2 inch |
| Port Type | NPT |
| Installation | IOM 7321 |
| Orifice Size | 5/8 inch, 5/8 |
| Input Voltage | 110/50 VAC, 120/60, 110/50 |
| Coil Type | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) |
| Maximum Pressure Differential | 150.0 psi, 150.0 |
| Ingress Protection Rating | NEMA 4, 4X |
| Insulation Class | Class F |
| Power Consumption | 11.0 W, 11.0 |
| Minimum Pressure Differential | 0.0 psi, 0.0 |
| Main Flow Coefficient | 4.0 Cv, 4.0 |
| Valve Configuration | 2 Way, Normally Closed |
| Preventive Maintenance Kit | 08F23C2140ACFR |
