This series is general superseded by G7 Series 22/23 Valves.

Availability: In stock

SKU

12F23C2148ACF4C01

Available Qty

Lead Time

Details

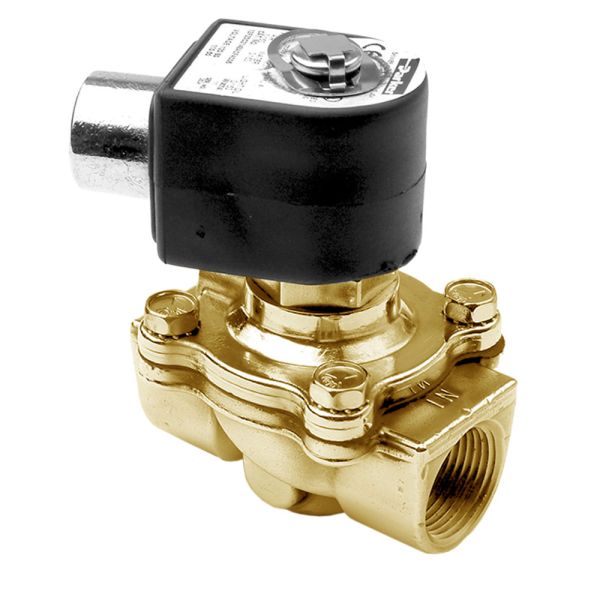

Parker Gold Ring legacy product has a rich history in industrial and commerical applications.

More Information
Media	General Purpose
Division	Fluid Control Division
Specifications Met	EMC, UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage
Body Material	Brass
Seal Material	NBR
Maximum Ambient Temperature	130.0 °F, 130.0
Maximum Fluid Temperature	180.0 °F, 180.0
Actuation Type	Direct Lift
Function	2-Way, Normally Closed
Port Size	3/4 inch, 3/4
Port Type	NPT
Installation	IOM 7321
Orifice Size	3/4 inch, 3/4
Input Voltage	24/60, 24/60 VAC
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Maximum Pressure Differential	150.0 psi, 150.0
Ingress Protection Rating	NEMA 4, 4X
Insulation Class	Class F
Power Consumption	11.0 W, 11.0
Minimum Pressure Differential	0.0 psi, 0.0
Main Flow Coefficient	5.0 Cv, 5.0
Valve Configuration	2 Way, Normally Closed
Preventive Maintenance Kit	12F23C2148ACFR
