BD4 A0/40 W0/40

CHD A5/125 W5/100 L5/100

BE4 STEAM 1/125

Be the first to review this product

Parker Fluid Control Division has a long history in manufacturing industry-leading steam and hot water valves. Robust and debris-tolerant internals, stainless steel seat, and integrated strainer facilitate long life and overall system health.

Availability: In stock

SKU

06FS5C2432ACH4C05

Available Qty

Lead Time

Details

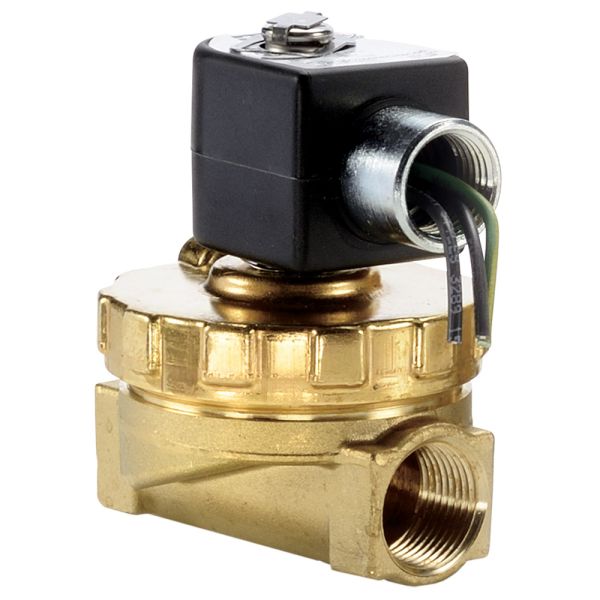

Gold Ring(TM) brand water & steam solenoid valves represent the “gold standard” in diverse industrial and commercial applications. A full-ported design and pivoted-edge diaphragm construction deliver high flow rates in a compact footprint with low pressure drop. These steam valves feature an integral stainless steel orifice for long life and durability. FCD has expanded this offering to include Lead-Free Brass (containing less than 0.25% lead), meeting the SDWA, Section 1417(d) requirements for brass.

More Information

More Information
Media	Water, Steam, Hot Water
Division	Fluid Control Division
Specifications Met	CE - Low Voltage, EMC, UL, CSA Listed General Purpose Valve, SDWA Section 1417(d) Brass, CSA Listed General Purpose Valve; SDWA Section 1417(d) brass; CE - Low Voltage
Body Material	Brass
Seal Material	PTFE
Valve Type	2-Way
Maximum Ambient Temperature	131 °F, 131.0
Maximum Fluid Temperature	353 °F, 353
Actuation Type	Internally Piloted, Internal Pilot
Function	Normally Closed, Normally Closed (NC)
Port Size	3/8 inch, 3/8"
Port Type	NPT
Installation	IOM 7320
Orifice Size	3/8 inch, 3/8
Input Voltage	110/50 VAC, 120/60 VAC, 120/60, 110/50
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Maximum Pressure Differential	- psi, -
Ingress Protection Rating	NEMA 4X, NEMA 4, 4X
Power Consumption	11 W, 11.0
Minimum Pressure Differential	1.0 psi, 1.0
Main Flow Coefficient	3.0 Cv, 3.0
Preventive Maintenance Kit	06FS5C2432ACHR
