BE4 A5/125 W5/125 L5/125

2-way,N/C,air, water, liquid

BE4 STEAM 1/125

Be the first to review this product

Parker Fluid Control Division has a long history in manufacturing industry-leading steam and hot water valves. Robust and debris-tolerant internals, stainless steel seat, and integrated strainer facilitate long life and overall system health.

Availability: In stock

SKU

16FS5C2464ACH4C05

Available Qty

Lead Time

Details

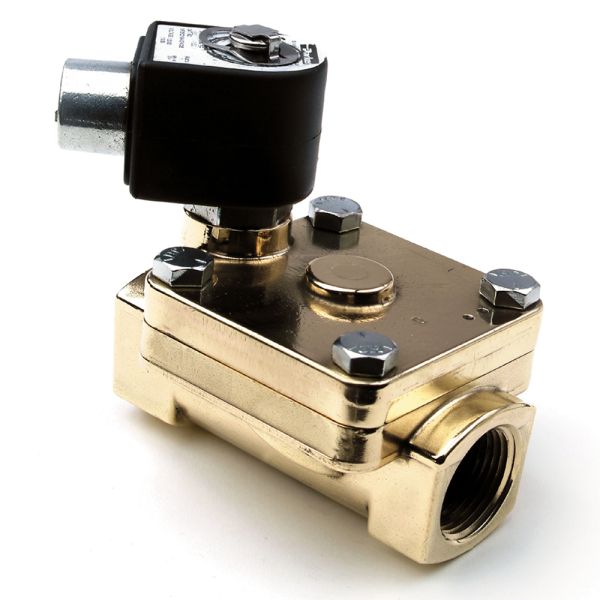

Gold Ring(TM) brand water & steam solenoid valves represent the “gold standard” in diverse industrial and commercial applications. A full-ported design and pivoted-edge diaphragm construction deliver high flow rates in a compact footprint with low pressure drop. These steam valves feature an integral stainless steel orifice for long life and durability. FCD has expanded this offering to include Lead-Free Brass (containing less than 0.25% lead), meeting the SDWA, Section 1417(d) requirements for brass.

More Information

More Information
Media	Water, Steam, Hot Water
Division	Fluid Control Division
Specifications Met	CE - Low Voltage, EMC, UL, CSA Listed General Purpose Valve; CE - Low Voltage, CSA Listed General Purpose Valve
Body Material	Brass
Seal Material	PTFE
Valve Type	2-Way
Maximum Ambient Temperature	131 °F, 131.0
Maximum Fluid Temperature	353 °F, 353
Actuation Type	Internally Piloted, Internal Pilot
Function	Normally Closed, Normally Closed (NC)
Port Size	1.0 inch, 1.0
Port Type	NPT
Installation	IOM 7320
Orifice Size	1, 1.0 inch
Input Voltage	110/50 VAC, 120/60 VAC, 120/60, 110/50
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Maximum Pressure Differential	- psi, -
Ingress Protection Rating	NEMA 4X, NEMA 4, 4X
Power Consumption	11 W, 11.0
Minimum Pressure Differential	1.0 psi, 1.0
Main Flow Coefficient	12.2 Cv, 12.2
Preventive Maintenance Kit	16FS5C2464ACHR
