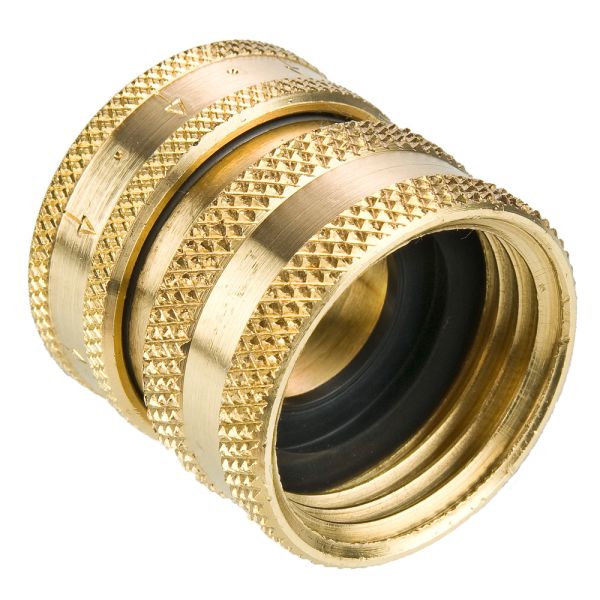

Parker's Garden hose fittings connect garden hose to other garden hose, to pipe or to tubing. Hose end threads are 3/4" garden hose thread. Swivel connectors allow hose to twist without kinking. Hose barb ends for use with 97HC hose clamp or equivalent. All female connector ends should have a rubber washer (901GH-12) inserted prior to usage.
Parker's water service couplings are used anywhere water hoses are connected and disconnected frequently. The unvalved design permits maximum flow with minimum pressure drop.
Markets:
• Industrial
• Mobile
• Factory/process automation
Features/Benefits:
• All brass construction
• ¾” garden hose thread
• Rubber washer
• Flare, hose barb and pipe end configurations
• High flow couplers
Applications:
• Water lines
• Wash down lines
• Mobile water tanks
Custom configurations and sizes are available upon request. Contact us for additional information.
| Maximum Operating Pressure | 200 psi, 14 bar |
|---|---|
| Division | Fluid System Connectors Division |
| Maximum Operating Temperature | 250 °F, 121 °C |
| Minimum Operating Temperature | -40 °F, -40 °C |
| Tube Material | Garden Hose, Tubing, Pipe |
| Body Material | Brass |
| Connection 1 Style | Hose Thread |
| Connection 2 Thread Size (inch) | na |
| Shape | Coupler |
| Connection 1 Tube O.D. (inch) | na |
| Connection 2 Style | na |
| Style | Hose Thread |
| Connection 1 Thread Size (inch) | 3/4 |
| Connection 1 Hose I.D. (inch) | na |
| Connection 2 Hose I.D. (inch) | na |
| Washer Material | Rubber |
