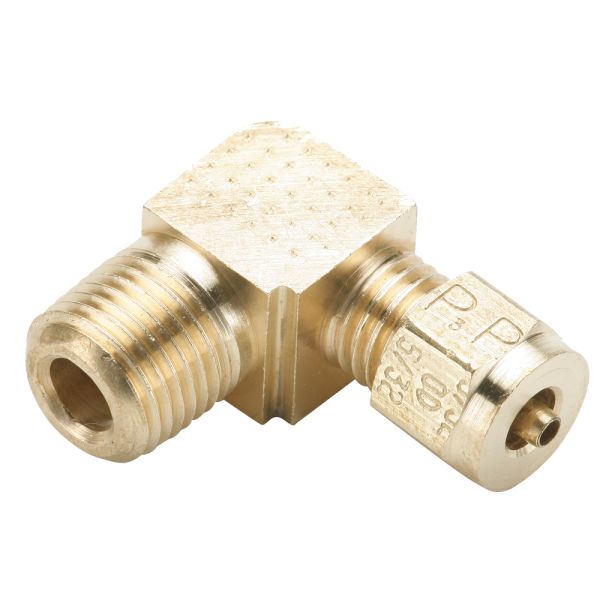

Parker’s compression style transmission fitting utilizes a specially designed slotted sleeve to help eliminate notch stress related to over torque. Transmission fittings are ideal for pressure protected pneumatic transmission applications. Transmission fittings are also available in a push-to-connect style reducing assembly time. The push-to-connect style has a staked in tube support and is D.O.T. approved. Electroless nickel plated bodies can be used with bio-diesel.
Use with the following Parker Parflex Division J844 tubing
• 1120 Nylon Air Brake Tubing
• 1320 Quantum Elastomeric Air Brake Tubing
Markets:
• Heavy duty truck
Features/Benefits:
• All brass construction
• D.O.T. approved with staked in tube support
• Compression & Push-to-Connect styles
• Slotted sleeve
• Use with J844 nylon tubing
• Electroless nickel plated bodies can be used with bio-diesel
Applications:
• Air shift transmissions
• Seat controls
• Dash controls
Custom configurations and sizes are available upon request. Contact us for additional information.
| Media | Compressed Air |
|---|---|
| Maximum Operating Pressure | 150 psi, 10 bar, 10.3 bar |
| Division | Fluid System Connectors Division |
| Application | Air Shift Transmission, Seat Controls, Dash Controls |
| Maximum Operating Temperature | +200 °F, 93.3 °C, 104 °C, 220 °F |
| Minimum Operating Temperature | -40 °F, -40 °C |
| Product Style | Tube to Pipe |
| Tube Material | SAE J844 Type A & B Nylon Tubing, SAE J844 Type & B Nylon Tubing |
| Nut Material | Brass |
| Body Material | Brass |
| Shape | 90° Elbow |
| O-Ring Material | Nitrile |
| Connection 2 Size | 1/8 inch |
| Connection 1 Size | 1/8 inch, Compression |
| Connection 2 Tube Outside Diameter | na |
| Brand | Parker |
| Connection 2 Type | Male Pipe Thread |
| Connection 1 Type | Compression |
| Technology | Fluid & Gas Handling |
| Sleeve Material | Brass |
| Collet Material | Brass |
