| Maximum Operating Pressure | 200 psi, 13.7 bar |
|---|---|
| Division | Fluid System Connectors Division |
| Maximum Operating Temperature | +93 °C, +200 °F |
| Minimum Operating Temperature | -17 °C, 0 °F |
| Specifications Met | n/a |

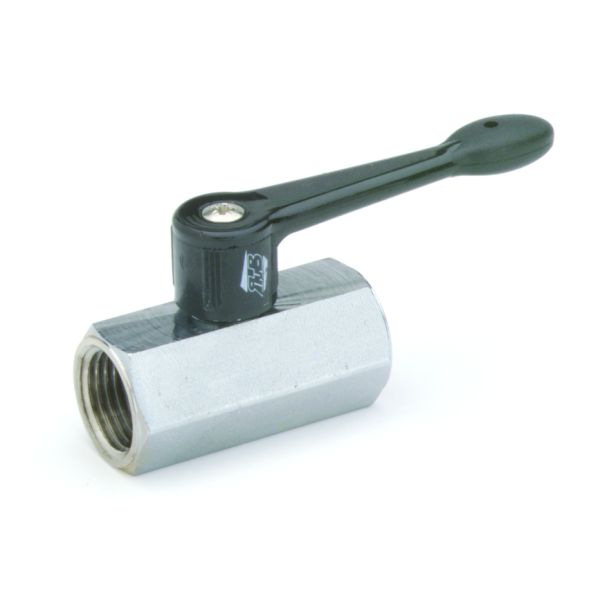

| Product Type | Ball Valve |
| Body Material | Chrome Plated Brass |
| Connection 2 Thread Size (inch) | 1/4 |
| Style | Female Pipe Ends |
| Connection 1 Thread Size (inch) | 1/4 |
| Connection Type | NPT |
| Seal Material | PTFE |
| Lock Type | Non-Locking |
| Maximum Working Pressure (psi) | 200 |
| Configuration | In-line |
| Mounting Type | In-Line |
| Maximum Flow Rate | 4.0 Cv |
| Actuation Type | Manual |
| Operation Type | on/off |
| Function | 2-Way |
| Ball Material | Chrome Plated Brass |
| Handle | Polyamide Lever |
| Connection Size | 1/4 inch |
| Seat Material | PTFE |
| Connection 1 Thread Style | Female Pipe |
| Connection 2 Thread Style | Female Pipe |
| Handle Type | Lever |
| Orifice Size | N/A |
| Vacuum Rating (inch of Hg) | na |
| Maximum Working Pressure (Bar) | 13.7 |
