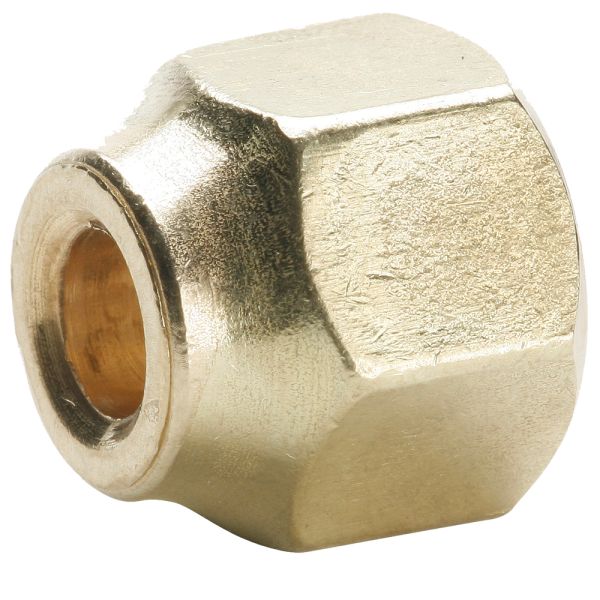

Parker's 45° flare fittings are economical for a metal-to-metal seal that are designed for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Flare fittings are appropriate alternatives for solder type joints where an open flame is either not desired or impractical. Fittings are available in forgings for refrigeration applications. Fittings meet functional requirements of SAE J512 and J513.
Markets:
• Refrigeration
• Heavy Duty Truck
• Mobile
• Industrial
• Heating
• Air conditioning
Features/Benefits:
• All brass construction
• Forged nuts for refrigeration applications
• Long nuts for vibration
• U.L. listed for flammable liquids
• Functional requirements of SAE J512 & SAE J513
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Refrigerant lines
• Propane lines
• Fuels
• Natural Gas
• Oil burners
• Adapters
Custom configurations and sizes are available upon request. Contact us for additional information.
| Media | Air, Water, Inert and Non-combustible Gasses, Flammable Liquid, Freon |
|---|---|
| Maximum Operating Pressure | 750 psi, 193 bar, 2800 psi, 51.7 bar |
| Division | Fluid System Connectors Division |
| Application | Pumps, Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines, Gas Grills, Coffee Makers |
| Maximum Operating Temperature | 250 °F, 121 °C |
| Minimum Operating Temperature | -53 °C, -65 °F |
| Product Style | Flare |
| Specifications Met | SAE J512, SAE J513 |
| Tube Material | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared |
| Nut Material | Brass |
| Body Material | Brass |
| Shape | Short Forged Nut |
| O-Ring Material | Fluorocarbon |
| Connection 2 Thread Size | na |
| Connection 1 Tube Outside Diameter | 1/2 inch |
| Connection 2 Tube Outside Diameter | na |
| Connection 3 Thread Size | na |
| Connection 3 Tube Outside Diameter | na |
| Brand | Parker |
| Connection 2 Type | na |
| Connection 1 Type | Flare |
| Connection 3 Type | na |
| Technology | Fluid & Gas Handling |
| Connection 1 Thread Size | 3/4-16 inch |
