CARSTICK

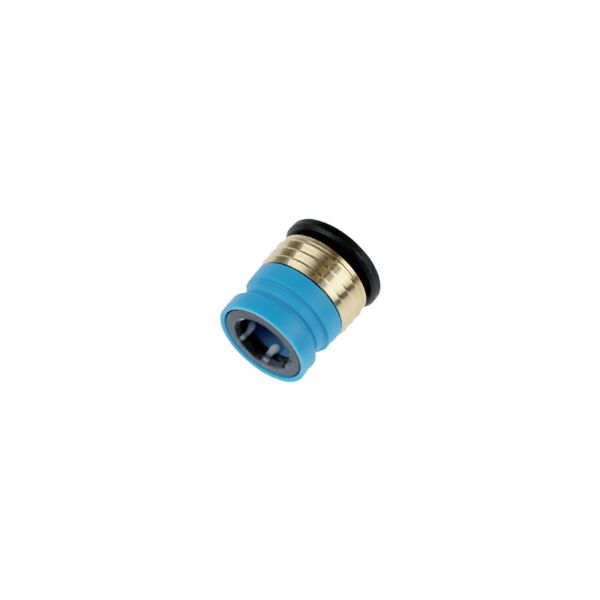

Carstick® is a fully integrated one-piece cartridge providing instant connection between the housing and the tubing. It can be inserted in elastic polymers, brass, aluminum non-threaded and non-grooved cavities. Carstick® allows the optimization of your system design and enables the automation of your manufacturing process. This is the right connection solution for energy, space and time saving.



Carstick+ is an extended version of Carstick®. This push-in fitting can be inserted with a low effort. It is suitable for a large range of housing materials including non-elastic polymers. It is removable without damaging its cavity making it reusable.



Carstick® and Carstick+ push-to-connect cartridges enable a quick tube connection and can be used in various low-pressure applications such as liquid and pneumatic applications. Please, look out for the below list of industries Carstick® and Carstick+ can be used for:



Industries:
• Automation
• Industrial
• Transportation
• Food & Beverage
• Thermal Management
• Life Sciences

Features/Benefits:



Carstick®

• Media: Drinking water, beverage, steam, glycol, deionized water, coolant, compressed air, inert gas
• Materials: technical polymer, brass or chemical nickel-plated brass, stainless steel, NBR or EPDM (FKM on demand)
Compressed air applications (NBR)
• Pressure: vacuum to 20 bar
• Temperature: -20°C to +80°C
Liquid applications (EPDM)
• Pressure: vacuum to 16 bar
• Temperature: -20°C to +95°C (+130°C for D4, D6, D8)
Low temperature applications (NBR)
• Pressure: vacuum to 16 bar
• Temperature: -40°C to +80°C



Carstick+

• Media: drinking water, beverage, steam, glycol, deionized water, coolant, compressed air, inert gas
• Materials: technical polymer, stainless steel, EPDM or FKM (NBR on demand)
EPDM version
• Pressure: up to 16 bar
• Temperature: up to +120°C
FKM version
• Pressure: up to 16 bar
• Temperature: up to +140°C



Shared benefits of Carstick and Carstick+

• Productivity Saving – one single component
• Carstick® and Carstick+ are designed to be automatically inserted
• No need to groove your cavity
• Seal pre-assembled and protected
• Ready-to-use packaging - Carstick® and Carstick+ packaging facilitates the automatic assembly process
• Fluid integrity is assured since the only component in contact with the convey fluid is the seal



Carstick+ additional benefits

• Removable – in case of failure during the insertion Carstick+ can be removed without damaging the housing
• Universal cavity – Carstick+ can be inserted in various materials without any specific development
• Space saving – This is the most compact cartridge on the market

Applications:

For Automation & Industrial:
• Packaging manufacturing
• Robotic
• In-plant automotive
• Pneumatics
• Solenoid valves
• Pneumatic cylinders
For Food & Beverage
• Coffee machine
• Water dispenser
• Water treatment
For Thermal Management
• Semiconductor manufacturing
• Power generation (li-ion battery, frequency converter, drive)
• Welding device/robot
• Data center
• Supercomputer
• Lithography machinery
For Transportation:
• Pneumatic suspension
• Auxiliary pneumatic system for cab and seat
For Life Sciences:
• Medical respiratory device

• Anaesthesia machine

• Dental chair
