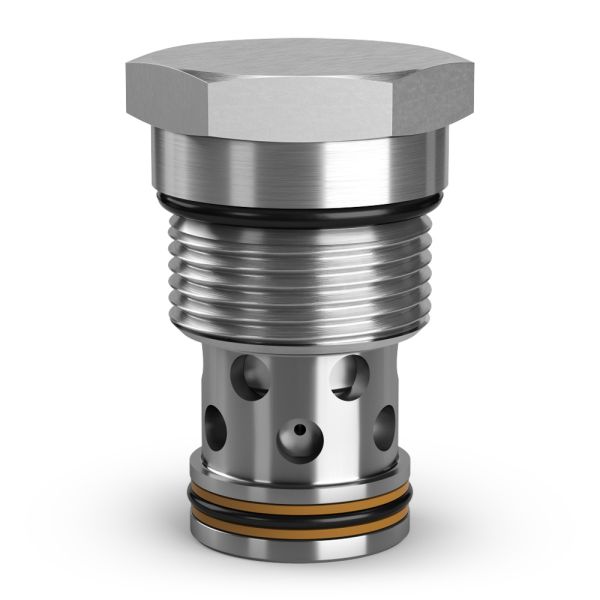

CHECK VALVE

DC SERIES CHECK VALVE 5PSI CRACKING PRES

CART.C/V(POPPET TYPE-6000PSI)

Be the first to review this product

GLOBAL CORE - Parker ball type check valves are simple in their design and are used to block flow in one direction, and allow flow in the opposite direction. Capable of flows up to 42 GPM and pressures as high as 6000 psi.

Availability: In stock

SKU

D06B2P0.1N

Available Qty

Lead Time

Details

Parker ball type check valves are designed with a ball held against a seat by a spring. This prevents flow in one direction at all times, but permits flow in the opposite direction when the pressure is high enough to lift the ball off its seat. The pressure at which reverse flow is permitted is called the cracking pressure. By using a hardened ball and finished seat, leakage rates are less than 5 drops per minute in the blocking direction.

More Information

More Information
Maximum Operating Pressure	6000 psi, 420 bar
Division	Hydraulic Valve Systems Division, Mobile Hydraulic Systems Division Europe
Maximum Operating Temperature	250 °F, 121 °C
Minimum Operating Temperature	-30 °F, -34 °C
Weight Parker	0.6 lb, 0.27 kg
Body Material	N/A
Seal Material	Nitrile
Flow Rate	74 gal/min @ 100 Psi (7 bar) Nominal, 280 L/min @ 100 Psi (7 bar) Nominal
For Fluid Type	Mineral-based Hydraulic Fluids, Synthetic Hydraulic Fluids
Maximum Inlet Pressure Rating	6000 psi, 420 bar
Maximum Flow Rate	132 gal/min, 500 L/min
Actuation Type	Pressure Sensing
Installation Torque	74 lb-ft, 100 Nm
Valve Material	Steel (all parts), Hardened Steel (all operating parts)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Cavity Size	C16-2
Function	Standard Check
Operating Temperature	-30 to +250 °F, -34 to +121 °C
Flow Direction	2-1 Checked, 1-2 Free Flow
Cracking Pressure	0.1 BAR, 1.5 psi
Leak Rate	< 3 drops/min @ 6000 Psi (420 bar)
