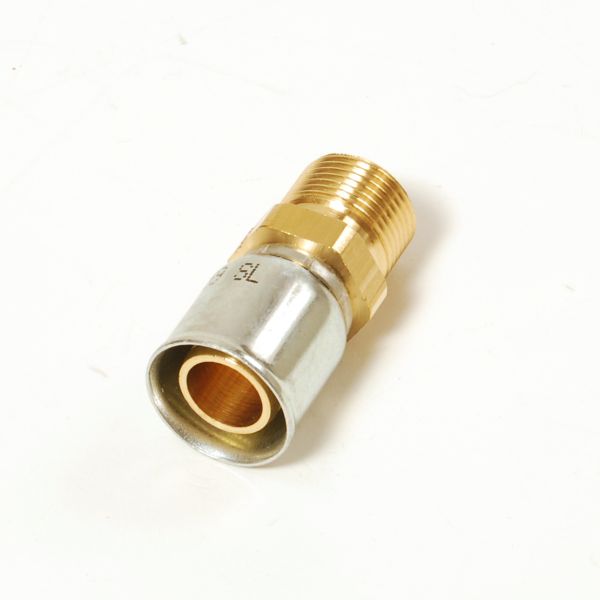

main product photo
Loading...
HOSE END

HOSE END

HOSE END

HOSE END

COM. AIR BRAKE STEEL ELBOW

Be the first to review this product
Compression Air Brake
Availability: In stock
SKU
16191N-8-8
Lead Time
7
Add to Wish List
Parker's 91/91N Series fittings are used with smooth bore, medium pressure PTFE hoses from the Parflex division. Our wide selection of crimp fittings for PTFE hoses include, but are not limited to, NPT, JIC and Seal-Lok™ designs with many fittings available in Stainless Steel for corrosive applications. The fittings have a lead-in feature at the base to simplify proper hose insertion and can be crimped with any of the Parkrimp machines. The dies for these crimpers include Parker's exclusive Parkalign® system, featuring a positive-stop design that positions the fitting in the die for a perfect crimp every time.

Markets:
• Industrial
• Air & Gas compressors
• Packaging machinery
• Printing and marking equipment

Features:
• Lead-in design
• Parkalign® dies

Applications:
• Chemical transfer lines
• General hydraulics
• Compressed air/gases
• Adhesive dispensing
• Coolant lines
More Information
Maximum Operating Pressure 20.7 MPa, 207 bar, 3000 psi (Dependent on hose)
Division Parflex Division
Application Chemical Transfer, Hydraulics, Tools & Equipment, General Industrial, Medical, Pneumatics, Ultra High Purity, Fluid Control, Instrumentation, Semiconductor
Product Style Compression Air Brake
Specifications Met n/a
Product Type Hose Fittings
Body Material Brass (Nipple), Steel (Nut and Shell)
Shape Straight
Tube Outside Diameter n/a
Dimensional Weight 0.0522 lb
Length (inch) 1.65"
Connection 2 Size 11/16"-20 inch Thread, 11/16"-20
Connection 1 Size -8 (Size), 10.3 mm, 13/32 inch Hose I.D.
Brand Parker
Connection 2 Type Male, Compression Air Brake
For Fluid Type Steam, Gases, Hydraulic Fluids, Chemicals, Water, Pharmaceutical Fluids, Air (Pneumatic Media), Oil
Hose I.D. (inch) 13/32"
Hex Size n/a
Industry Transportation, General Industrial, Food & Beverage, Semiconductor, Healthcare & Life Sciences
Connection 1 Type Hose
Product Series 91N
Configuration Hose to Port
Technology Fluid & Gas Handling
Connection Length 24 mm, 15/16 inch Cut-off allowance (see drawing legend B)
Fitting Length 41 mm, 1.63 inch (see drawing legend A)
Coating Chromium 6 Free-plated
Hex Size 1 3/4 inch (see drawing legend H)
