COMP. NATURAL GAS PLST HOSE

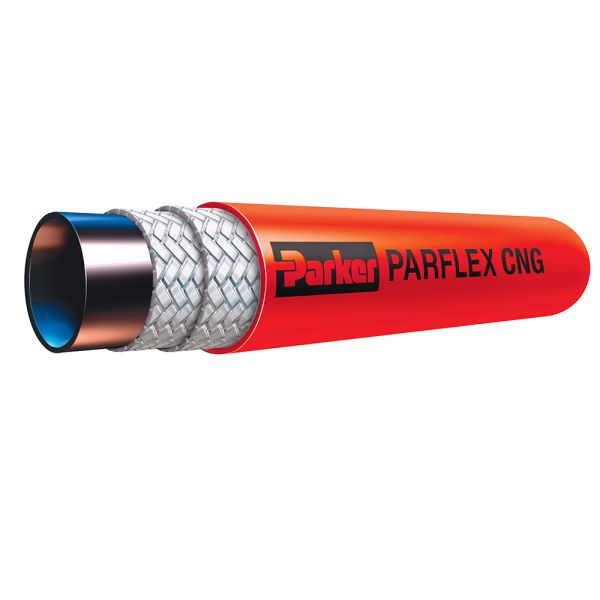

5CNG compressed natural gas hose for on-vehicle fuel systems and CNG dispensers is used to transfer compressed natural gas (CNG). 5CNG hose is up to 30% lighter than rigid tubing and is supplied in a single-line or bonded twin-line CNG hose assembly. A twin-line hose assembly can reduce part number complexity and eliminate tangled hoses in a dispenser system.

Markets:
• Transportation
• Refueling Stations
• Automotive

Features/Benefits:
• Light weight
• Electrically conductive nylon core tube
• Twin-line hose assemblies prevent tangling
• CSA listed
• Available in ¼” (-4) to 1” (-16)

Conforms to:
• ANSI/CSA NGV 4.2*CSA 12.52 (Class A, Class D)
• ECE R110 CNG Class 6
• ANSI NGV 3.1*CSA 12.3 (Class B - P36) 5CNG-8 only
• NFPA 52
• CSA Certified (www.csagroup.org)

Applications:
• CNG dispenser
• Fleet transit
• CNG fuel transfer
• Residential CNG refueling

Technical Specifications:
• CNG hose must be assembled at the factory or by a Parflex approved facility
• Appropriate wire and vinyl guards must be used on ANSI/CSA compliant single-line and twin-line bonded hose assemblies
-4 to -8 SS wire guards
-12 & -16 Vinyl guards
• Hose I.D. is nominal
• Hose O.D. is maximum
