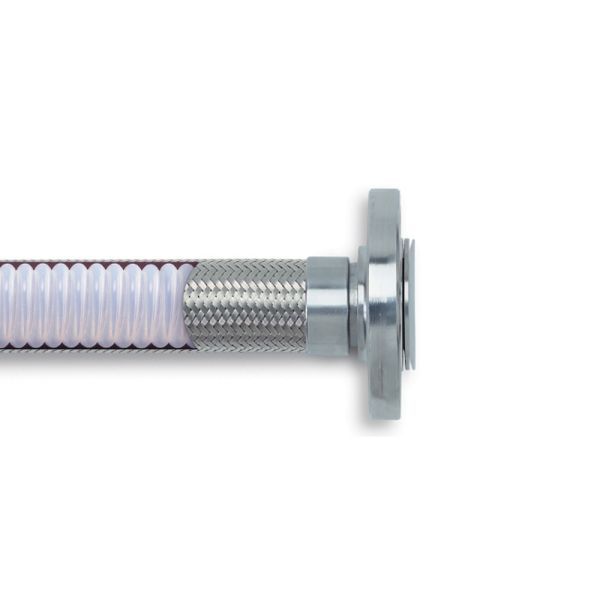

Parker SCW and SCB hoses are seamless, low profile, environmentally safe, self-draining and able to withstand extreme flexing. They are suitable for fluid handling, chemical transfer, paint and semiconductor applications.
Parker SCW and SCB Convoluted PTFE hoses 304SS braid are seamless, low profiled, convolutions that withstand extreme flexing for fluid handling, chemical transfer, paint and semiconductor applications. The cutting-edge, highly developed design offers exceptional corrosion resistance and high temperature tolerance for added protection under numerous operating conditions. In addition, the FDA compliant core tube of SCW is manufactured with a smooth, rounded, helical-shaped convolution, allowing the hose to be self-draining and easy to clean. The durable 304 Stainless Steel reinforcement for SCB and SCW leads to a long life expectancy and makes the hose less susceptible to cracking from stress or flexing, in comparison to metal hoses or other fluoropolymer hoses, when used within designated operating parameters. Download the literature on the Product Support tab for more information.
Features/Benefits: • High temperature hose • Excellent corrosion resistance • Seamless • Low profile • Self-draining • Withstands extreme flexing • Environmentally safe; low effusion • Long life expectancy
Applications: • Fluid handling • Chemical transfer • Paint • Semiconductor
CCompliance: • FDA 21 CFR 177.1550 (core tube) • USP Class VI (core tube)
Technical Specifications: • Not suggested for steam-cold water cycling applications • Working and burst pressures rated at 73°F (23°C) • Hose dimensions are nominal • Used with PAGE fittings and crimp collar SC300 only • Cannot be used with 90, 91N or 93N Series fittings
