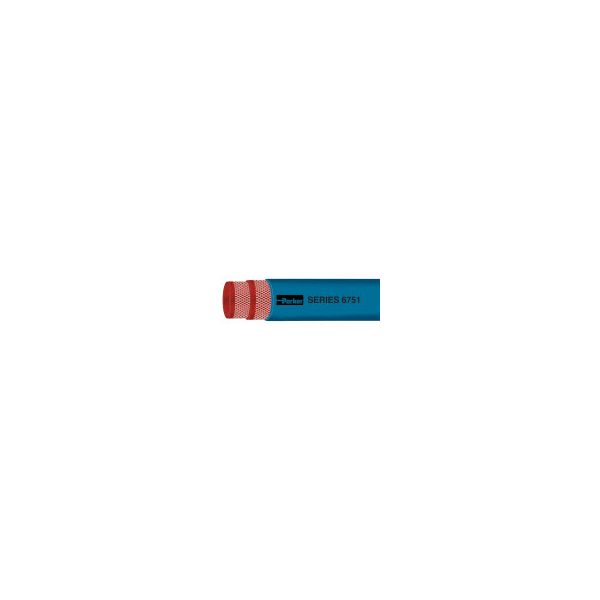

COOLANT HOSE 4PLY 1"X 3'BLUE

Silicone Heavy Duty High Temperature Coolant Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 350°F and 159 psi, Series 6751
Availability: In stock
SKU
6751-1000003
Lead Time
66
Parker's Series 6751 Silicone Heavy Duty High Temperature Coolant Hose provides excellent service across a wide variety of coolants and multiple engine heater and radiator applications. The silicone construction resists chemicals, aging, cold leaks, cracking, delamination, heat, ozone and peeling to maximize performance. The thick hose wall provides robust service, is flexible for easy routing and installation and resists the elevated temperatures common to engine compartments and is available in convenient 3-ft standard lengths.

Markets:
• General Industrial
• Transportation

Features/Benefits:
• Tube: Red silicone for superior heat resistance to 350°F.
• Reinforcement: Multiple textile plies for strength and kink resistance.
• Cover: Blue silicone for superior temperature resistance and easy identification.

Applications:
- media
• Coolant
• Hot water
- usage
• Coolant transfer in heater and coolant circuits
• Agricultural equipment
• Buses
• Construction equipment
• Off-road equipment
• Trucks

Industry Standards:
• SAE J20R1 Class A

Safety/Technical:
• Design Factor: 3:1
• Nonconductive
More Information
Media Water, Coolants
Maximum Operating Pressure 100 psi, 7 bar
Division Hose Products Division
Application Engine, Silicone Coolant
Hose Inner Tube Material Silicone, Brick Red
Inside Diameter 1 inch, 25.4 mm
Maximum Operating Temperature 350 °F, 176 °C
Minimum Operating Temperature -65 °F, -54 °C
Minimum Bend Radius n/a
Outside Diameter 1.380 inch, 35.1 mm
Specifications Met SAE J20R1, Class A
Cover Material Silicone
Hose Reinforcement Material 4 Plies of High Temperature Textile
Weight Parker 1.22 lb/ft, 1.81 kg/m
Hose I.D. (inch) 1"
Cover Color Blue
Quantity per Box 1 x 3-ft Lengths
Minimum Burst Pressure 20.6 bar, 299 psi
Package Type Carton
Cover Structure Glossy
Minimum Burst Pressure (psi) 299
