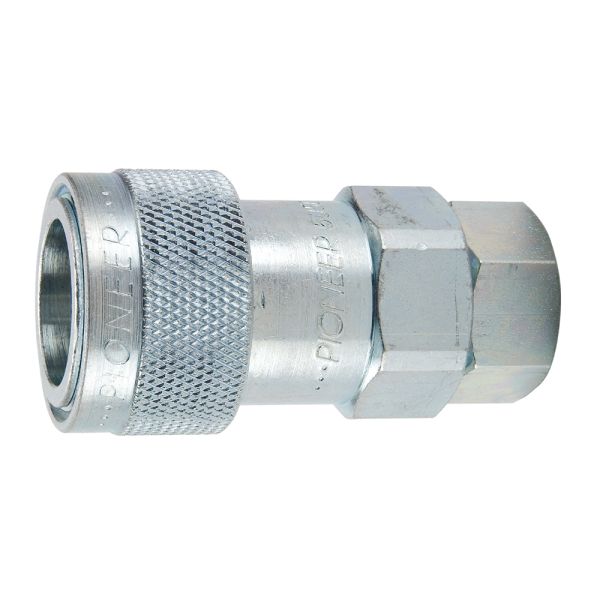

5000 Series Coupler (hydraulic) 2500 psi, connects with 8010 Series Nipples (ISO 5675 Pioneer universal male tips).
Parker's 5000 Series is a manual, threaded actuation coupler that can be connected under pressure with the use of tools. When the coupler and nipple are connected, the valves remain closed until the threaded union on the back of the coupler body is tightened. With the valves open, the sleeve is locked in position. Unscrewing the threaded union allows the valves to close and the coupler sleeve can then be retracted to release the nipple.
These economical steel couplers are available in 1/2" size for pressures up to 2500 psi.
Technical Characteristics: • Size: 1/2” • Material: Steel • Port Ends: Female NPTF • Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets: • Agriculture • Hydraulic equipment
Features/Benefits: • Globally connects with Pioneer male tips (8010 Series) or any other nipples conforming to ISO 5675 • Economical coupler to manually connect fluid lines under pressure with the use of tools
Applications: • Agricultural equipment and attachments • Lubrication systems • Hydraulic tools
