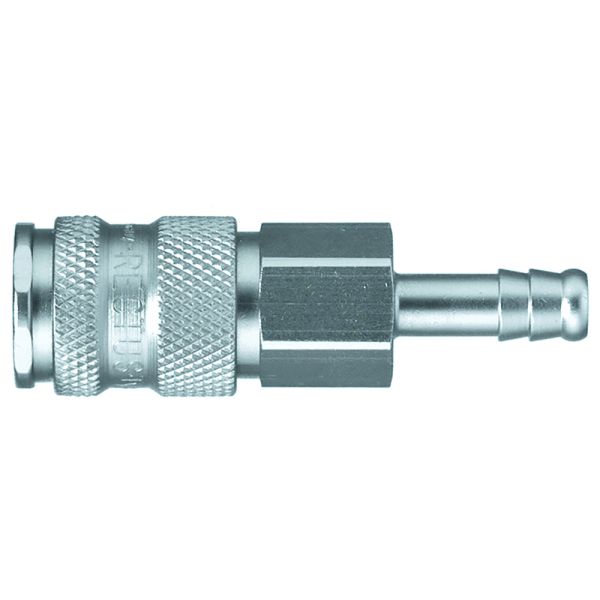

Parker’s Series 25 is industrial coupling with European profile. Coupling system with single-hand operation. High flow valve for optimum flow and low pressure drops. Series stands out for its robust design and long service life even with the harshest use.
Parker’s Series 1600 and 1625 are industrial coupling with European profile. Coupling system with single-hand operation. Suitable for compressed air application with greater than average air consumption. Ultra-High flow valve for optimum flow and low pressure drop. Extremely robust and ergonomically shaped (series 1625)
Markets:
Series 25 - Electronics and Energy Management
- Tranportation
- Life Science
- Industrial
Series 1600 and 1625 - Electronics and Energy Management
- Transportation
- Industrial
Features/Benefits:
- Industrial coupling with European profile, most representative profile worldwide
- Single-hand operation for easy and fast connection
- High-Flow and Ultra High-Flow valve for optimum flow and low pressure drop
| Media | Water, Steam, chemical fluids, Gases, Pneumatic Media |
|---|---|
| Maximum Operating Pressure | up to 35 bar, up to 507 psi |
| Division | Low Pressure Connectors Europe Division |
| Compatible Fitting | Series 25 Plug |
| Application | Industrial Machinery, Air & Gas Compressor, Energy Management, Trucks & Trailers, Pharma, Electronics, Mobile & Defence |
| Maximum Operating Temperature | 212 °F, 100 °C |
| Minimum Operating Temperature | -4 °F, -20 °C |
| Product Style | Quick-Connect |
| Outside Diameter | 23 mm |
| Specifications Met | RoHS, ATEX |
| Product Type | Pneumatic Quick Couplings |
| Weight Parker | 0.1019 kg |
| Length | 30 to 155 mm |
| Body Material | Brass |
| Shape | Straight |
| Materials of Construction | Brass |
| Connection Type | Push-Lok hose barb, Parker Push-Lok Hose Barb |
| Seal Material | NBR |
| Flow Rate | 1800 L/min (air) |
| Plating Type | Nickel Plated |
| Coupling Half | Coupler |
| Valve Type | High Flow Valve |
| Brand | Parker, Rectus |
| For Fluid Type | Air, Compressed Air |
| Interchange Type | European Profile |
| Hex Size | 13 to 24 mm |
| Industry | Transportation, General Industrial, Healthcare & Life Sciences, Electronics |
| Product Series | Series 25 |
| Technology | Pneumatics |
| Operation Type | Sleeve |
| Function | Single Shut-Off |
| Connection Size | 3/8 inch, 3/8" |
| Sleeve Material | Steel |
| Region of Origin | Germany |
| Quantity per Box | 10 |
| Diameter | 7.8 mm (nominal) |
| Version | Single Shut-Off |
| Valve Included | Yes |
