COUPLER ASSEMBLY

NIPPLE ASSEMBLY

COUPLER ASSEMBLY

Be the first to review this product

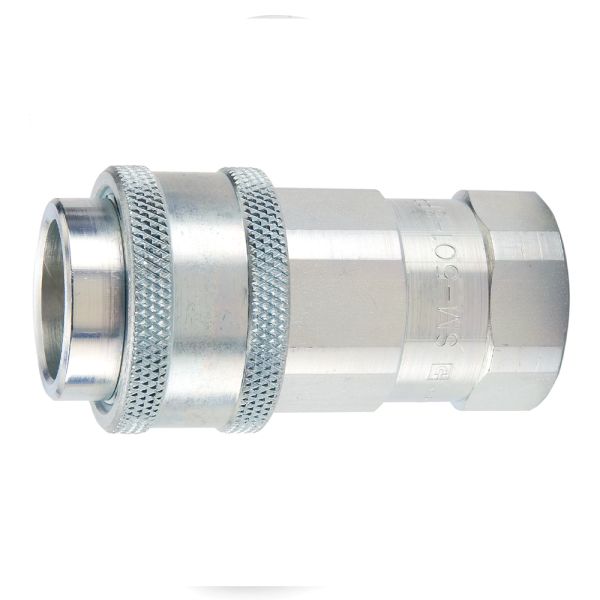

SM Series steel coupler

Availability: In stock

SKU

SM-751-16FP

Available Qty

Lead Time

Details

SM Series Couplers (hydraulic) up to 6000 psi connect with SM Series Nipples. Parker's SM Series are double shut-off quick couplings with manual sleeves and poppet valves.

Technical Characteristics:
• Sizes: 1/4” – 3/4”
• Material: Steel
• Port Ends: Female NPTF, Female ORB, Female BSPP
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
• Other Coupler options include: Sleeve Lock

Markets:
• Industrial
• Construction
• Agriculture

Features/Benefits:
• Poppet valves have captive seals to minimize seal washout
• Standard end configurations include Female NPTF, Female ORB, Female BSPP

Applications:
• Industrial hydraulic lines
• Mobile equipment

More Information

More Information
Maximum Operating Pressure	4500 psi
Division	Quick Coupling Division
Application	Hydraulic \|General purpose
Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F
Product Type	Manual Connect
Body Material	Steel
Connection Type	Female NPTF
Seal Material	Nitrile
Flow Rate	28 gal/min
Plating Type	Zinc with Clear Trivalent Chromate
Coupling Half	Female Coupler
Valve Type	Poppet
Connection Thread Size (inch)	1 - 11 1/2
Body Size (inch)	3/4
Hex Size	1.62
