E-Z FORM GS HOSE 1/2 IN. X 300 FT

Details

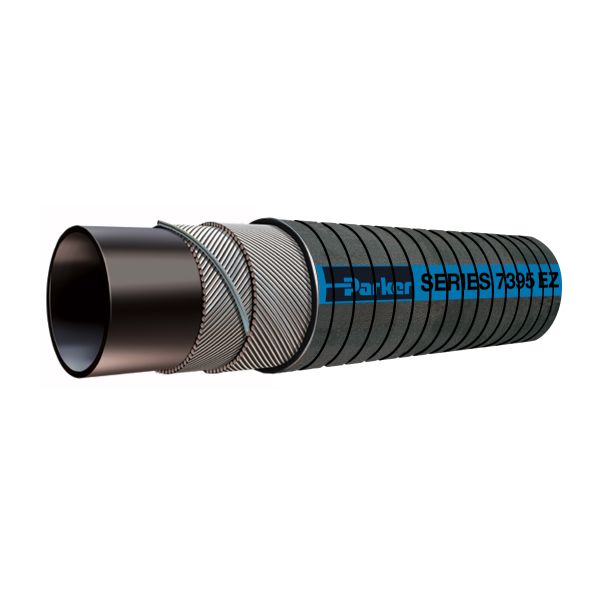

Parker's Series 7395 E-Z Form GS Greek Corrugated General Service Flexible Suction Hose provides excellent service across a wide variety of low pressure engine coolant transfer applications that require extreme hose flexibility where tight routing is a challenge. This molded coolant hose is lightweight, has a Greek corrugated construction, and provides an economical alternative to expensive made-to-order formed hose. Series 7395 is crush resistant and kink resistant for unimpeded flow, chemical resistant, offers superior flexibility for easy handling and installer/operator convenience, and is resistant to abrasion and weathering for maximum performance.

Markets:

• General Industrial

• Transportation

Features/Benefits:

• Tube: Peroxide cured EPDM for sizes up through 1", sulfer cured for sizes above 1".

• Reinforcement: Multiple textile braids or plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.

• Cover: Black EPDM for abrasion and heat resistance and durability.

• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.

• Lengths: Available in optional 25-foot coils, 130-foot coils or 300-foot reels for application/inventory efficiency and versatility.

Applications:

- media

• Air

• Coolant

• Mild chemicals

• Water

- usage

• Coolant lines

• Drain lines

• Industrial vacuum equipment/systems

• Buses

• Cranes

• Heavy duty trucks

• Mobile off-road equipment

Industry Standards:

• SAE J20R2-D1 performance:

• UL94 Flame Resistance Rating HB

Safety/Technical:

• Design Factor: 4:1

• Do not drag across sharp edges or highly abrasive surfaces.

Warnings:

• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.

More Information

More Information
Media	Air, Water, Coolants, Mild Chemicals - Check your fluid compatibility with our catalogue chart.
Maximum Operating Pressure	150 psi, 1.03 MPa, 10.34 bar
Division	Hose Products Division
Compatible Fitting	HY Series
Application	Engine
Hose Inner Tube Material	Black, Ethylene Propylene Diene Monomer (EPDM)
Inside Diameter	1/2 inch, 12.7 mm
Maximum Operating Temperature	257 °F, 125 °C
Minimum Operating Temperature	-50 °F, -45.6 °C
Vacuum Pressure Rating	737 mm-Hg, 29 inch-Hg
Minimum Bend Radius	0.9 inch, 24.1 mm
Outside Diameter	23.8 mm, 23.8 inch
Specifications Met	SAE J20R2, Class D1, UL94 Flame Resistance Rating HB
Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Design Factor	4:1
Hose Reinforcement Material	2 Plies of Textile with Wire Helix
Weight Parker	0.27 lb/ft, 0.40 kg/m
Maximum Working Pressure (psi)	75
Hose I.D. (inch)	0.9
Cover Color	Black
Package Type	Reel
Cover Structure	Greek-Corrugated
Standard Pack Qty (ft)	300
