N/C CARTRIDGE VALVE

N/C CARTRIDGE VALVE

E133F43 *

E133F43 *

E131K03 *

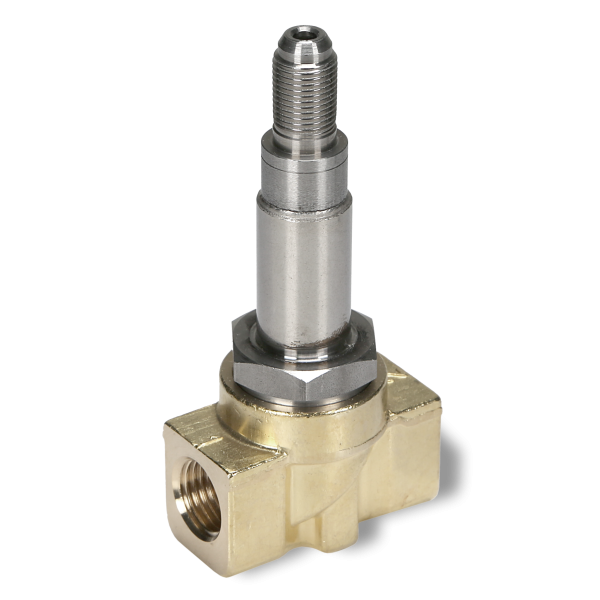

K Series is a full range of direct operated solenoid valves, from 1/8" to 1/2", offering many sealing materials and different flow rates.
Availability: In stock
SKU
E131K03
Lead Time
45
The K Series direct operated solenoid valves includes many options to fullfill the demand of the most challenging applications in Industrial and Process markets. The solid and robust design includes a stainless steel operator rated for million of life cycles. This product solution can optimize the total ownership costs in a broad range of heavy duty and high demanding applications.

Markets:
- Industrial equipments
- Industrial automation
- Fluid and process control

Applications:
- Compressors
- Air Treatment
- Fluids and gas control
- Actuators control in safe or harsh environment including Atex
- Water and steam control

Features/Benefits:
- Compact and robust
- Wide range of coils available including Atex
- Longest life service
More Information
Media Air, Neutral Gases, Liquids
Maximum Operating Pressure 7 bar AC/DC
Division Fluid and Climate Controls Europe
Specifications Met No
Body Material CW 617N UNI EN 12165
Seal Material FKM
Valve Type 3/2 Way
Minimum Fluid Temperature -10 °C
Maximum Fluid Temperature 120 °C
Actuation Type Direct Operated
Function Normally Closed
Port Size 1/4" G
Port Type Pipe Mounting
Minimum Operating Pressure 0 bar
Seat Material Stainless Steel
Orifice Size 2, 5 mm
Insulation Class -
Coil Specifications Met -
Electrical Connection -
