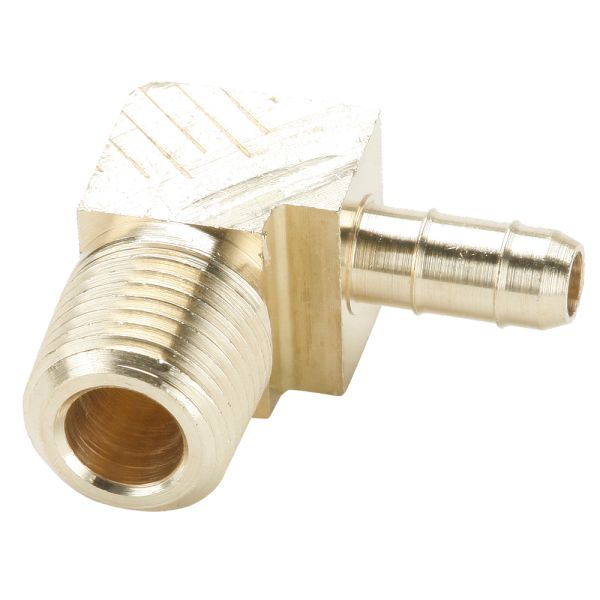

Parker's economical, one piece, Dubl-Barb® fittings are designed for quick assembly with polyethylene tubing without the use of a clamp. Because of the many available variations in qualities of polyethylene tubing, Dubl-Barb® fittings are recommended for use with Parker Parflex® polyethylene tubing (or an equal grade). Parker Parflex® tubing is highly resistant to environmental stress cracking which is necessary for long life when coupled with Dubl-Barb fittings. Assembly is simple, just cut tube squarely and push tube over the two barbs.
Use with Parker Parflex Division polyethylene tubing.
Markets:
• Pneumatic
• Environmental control
Features/Benefits
• All brass construction
• One piece
• Compact
• Excellent vibration resistance
• No clamp required
Applications:
• Climate control circuits
• Pneumatic systems
• Humidifiers
• Filters
• Test apparatus
Custom configurations and sizes are available upon request. Contact us for additional information.
| Maximum Operating Pressure | 150 psi, 10 bar |
|---|---|
| Division | Fluid System Connectors Division |
| Application | Industrial Controls |
| Maximum Operating Temperature | 32 °C, 90 °F |
| Minimum Operating Temperature | -53 °C, -65 °F |
| Tube Material | Polyethylene |
| Body Material | Brass |
| Connection 1 Style | Barb |
| Connection 2 Tube O.D. (inch) | na |
| Connection 2 Thread Size (inch) | 1/16 |
| Shape | 90° Elbow |
| Connection 1 Tube O.D. (inch) | 1/4 |
| Connection 2 Style | Male Pipe |
| Style | Tube to Pipe |
| Connection 3 Style | na |
| Connection 3 Thread Size (inch) | na |
