| Maximum Operating Pressure | 315 bar |
|---|---|
| Division | High Pressure Connectors Europe Division |
| Application | Hydraulics, Industrial |

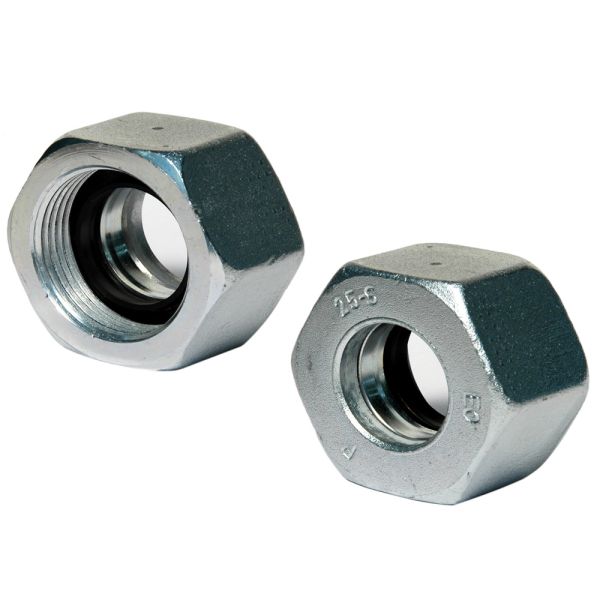

| Product Style | Components, EO2-Functional Nut |
| Specifications Met | ISO 8434 |
| Product Type | Hydraulic DIN Fittings |
| Body Material | Steel/Stainless Steel |
| Shape | n/a |
| Connection 2 Size | M14x1.5 mm Thread, M14x1.5 |
| Connection 1 Size | 8 mm Tube O.D., 8 mm (O.D.) |
| Seal Material | NBR |
| Brand | Ermeto |
| Maximum Ambient Temperature | 320 °F, 150 °C |
| Connection 2 Type | Metric |
| Minimum Ambient Temperature | -50 °C, -58 °F |
| For Fluid Type | Steam, Gases, Hydraulic Fluids, Chemicals, Fuels |
| Industry | Marine, Construction, Material Handling, Industrial Manufacturing Equipment, Agriculture, Automotive, Transportation |
| Connection 1 Type | Tube |
| Minimum Fluid Temperature | -50 °C, -58 °F |
| Maximum Fluid Temperature | 120 °C, 248 °F |
| Product Series | EO Light |
| Configuration | Tube to Port |
| Technology | Fluid & Gas Handling |
| Seal Type | Sealing Edge |
