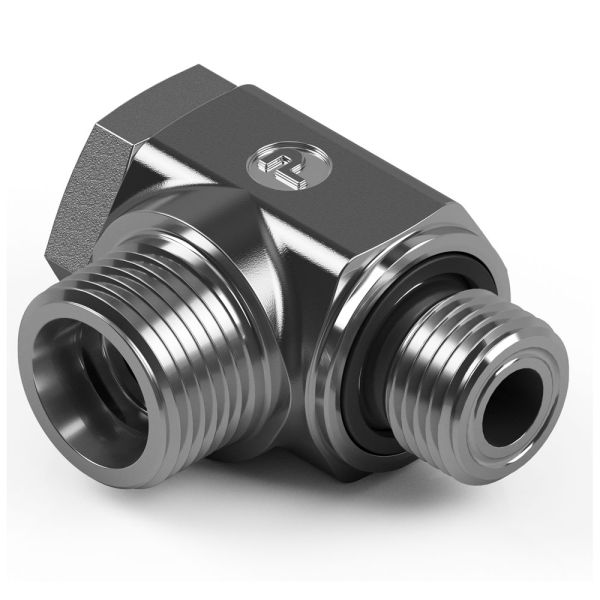

EO-BSPP SEAL HP BANJO 90

Banjo fittings are used in applications with limited space that involve high working pressure levels.

In the past, the Parker banjo fitting product range has included the W H(high-pressure resistant), SWVE (compact design) and DSVW (very good flow) properties series.

Now, we have combined these 3 series to create the new WHK series, uniting all of the advantages of our former banjo fitting designs.

Besides the product features also the product safety was improved. By the new design banjo bolts can not fall out during assembly thanks to the optimized design. Above that a mix-up between metric and inch dimensions is not possible anymore.

Markets:
• Automotive
• Defence
• Energy
• Environment
• Industrial
• Infrastructure
• Machine Tools
• Materials Handling
• Mobile
• Oil and Gas
• Power Generation
• Process
• Transportation
• Water

Applications:
Suitable for general hydraulic applications.

Features/ benefits:

• High-pressure resistant (up to 420 bar)

• Compact design

• Soft-sealing system with outstanding sealing properties

• Low pressure loss thanks to optimized banjo bolt design with angled drilling

• 2-in-1: Metal sealing version available - no additional metal sealing ring required

• Improved security

• Improved warehouse management

More Information

More Information
Maximum Operating Pressure	420 bar
Division	High Pressure Connectors Europe Division
Application	Chemical Transfer, Hydraulics, Mobile Equipment, Packaging, Oilfield, Fuel Transfer
Product Style	Banjo
Specifications Met	ISO 8434, DIN
Product Type	Hydraulic DIN Fittings
Body Material	Steel
Shape	Elbow 90°
Connection 2 Size	G 3/8 A inch Thread, G 3/8 A
Connection 1 Size	12 mm Tube O.D., 12 mm (O.D.)
Seal Material	NBR (Eolastic)
Brand	Ermeto
Maximum Ambient Temperature	300 °C, 572 °F
Connection 2 Type	Male, BSPP, Male BSPP
Minimum Ambient Temperature	-40 °F, -40 °C
For Fluid Type	Steam, Gases, Hydraulic Fluids, Chemicals, Fuels
Industry	Marine, Construction, Material Handling, Industrial Manufacturing Equipment, Agriculture, Automotive, Transportation
Connection 1 Type	Male, 24° Cone, Male 24° Cone
Minimum Fluid Temperature	-40 °F, -40 °C
Accessories Included	n/a
Maximum Fluid Temperature	572 °F, 300 °C
Product Series	EO Light
Configuration	Tube to Port
Technology	Fluid & Gas Handling
Seal Type	Soft Seal
