FLOW CONTROL G 3/8

EXHAUST PROTECTOR

Be the first to review this product

E9 protectors are intended for mobile or quick venting applications, and breathers that require protection against clogging. They are ideal for valves in harsh conditions and time sensitive applications, such as lift-axles, pushers or tag axles.

Availability: In stock

SKU

E90016

Available Qty

Lead Time

Details

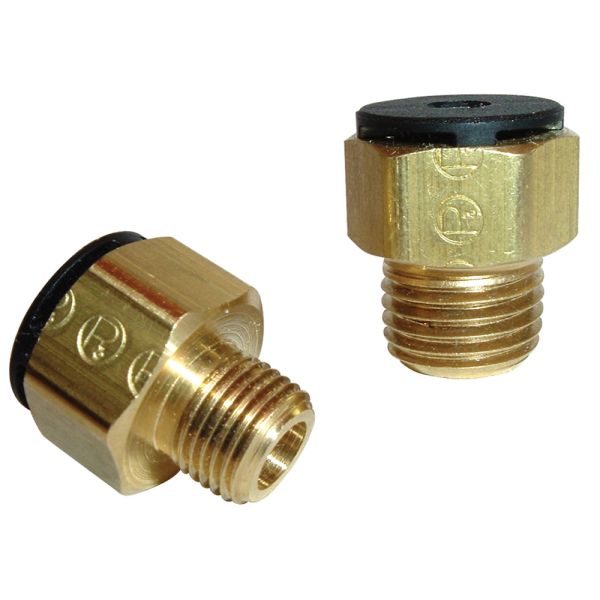

E9 series exhaust protectors are intended for mobile applications, quick venting applications, and alternative exhaust port breathers that require protection against clogging. They are ideal for valves exposed to harsh environmental conditions, which can cause a "caking up" in the exhaust pipe ports where the bronze mufflers or breather vents are installed.

Markets
• Mobile

Features/Benefits
• Ideally suited for harsh conditions

Applications
• Mobile
• Quick Venting
• Time-sensitive applications such as:
• Axle-lift suspensions
• Pushers
• Tag axles

More Information

More Information
Maximum Operating Pressure	6.89 bar, 100 psig
Division	Pneumatic Division
Body Material	Brass
Seal Material	Fluorocarbon
Flow Rate	56.5 to 62.7 SCFM @ 90 psi / 6.2 bar, 26.6 to 29.5 dm3/sec @ 90 psi / 6.2 bar
Maximum Inlet Pressure Rating	0 to 10.3 bar, 0 to 150 psig
Operating Temperature	-40° to +158° °F, -40° to +70° °C
Port Size	1/8 inch
Port Size (inch)	1/8
