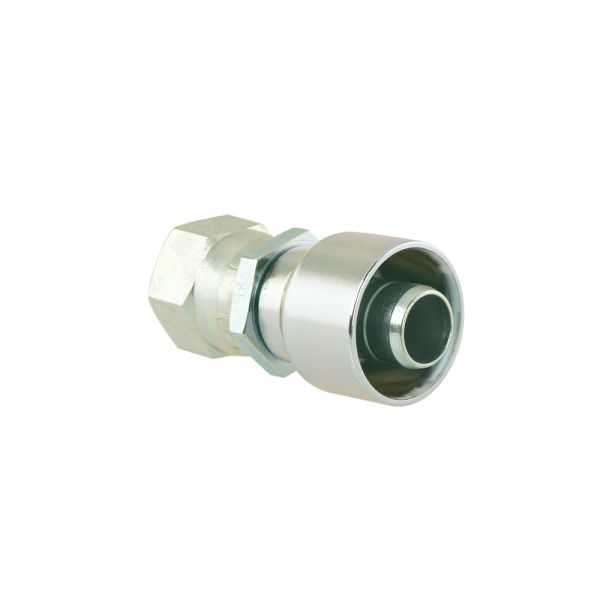

FEMALE JIC

Details

Parker's 93N Series fittings are used with convoluted, medium pressure PTFE hoses from the Parflex division. Our wide selection of crimp fittings for PTFE hoses include, but are not limited to, NPT, JIC and Seal-Lok™ designs with many fittings available in Stainless Steel for corrosive applications. The fittings have a lead-in feature at the base to simplify proper hose insertion and can be crimped with any of the Parkrimp machines. The dies for these crimpers include Parker's exclusive Parkalign® system, featuring a positive-stop design that positions the fitting in the die for a perfect crimp every time.

Markets:
• Industrial
• Air & Gas compressors
• Packaging machinery
• Printing and marking equipment

Features/Benefits:
• Lead-in design
• Parkalign® dies

Applications:
• Chemical transfer lines
• General hydraulics
• Hose applications requiring tight routings

More Information

More Information
Maximum Operating Pressure	1500 psi (Dependent on hose), 10.3 MPa, 103.0 bar
Division	Parflex Division
Application	Chemical Transfer, Fluid Control, Instrumentation, Food Processing, Laboratory, Public Works, Sampling
Product Style	Female JIC 37° - Swivel
Specifications Met	n/a
Product Type	Hose Fittings
Body Material	Stainless Steel
Shape	Straight
Length (inch)	4.12"
Connection 2 Size	2-1/2"-12 inch Thread, 2-1/2"-12
Connection 1 Size	3/4 inch Hose I.D., -32 (Size), 50.8 mm
Brand	Parker
Connection 2 Type	Female, Swivel, JIC 37°
For Fluid Type	Steam, Gases, Hydraulic Fluids, Chemicals, Water, Air (Pneumatic Media)
Hose I.D. (inch)	2"
Hex Size	2-1/2 inch (see drawing legend H)
Industry	Industrial Manufacturing Equipment, Transportation, Food & Beverage, Semiconductor, Healthcare & Life Sciences, Industrial Processing, Chemicals Processing
Connection 1 Type	Hose
Product Series	93N
Configuration	Hose to Port
Technology	Fluid & Gas Handling
Connection Length	65 mm, 2-9/16 inch Cut-off allowance (see drawing legend B)
Fitting Length	4.12 inch (see drawing legend A), 104.6 mm
Coating	None
Hex Size 1	2-7/8 inch (see drawing legend J)
