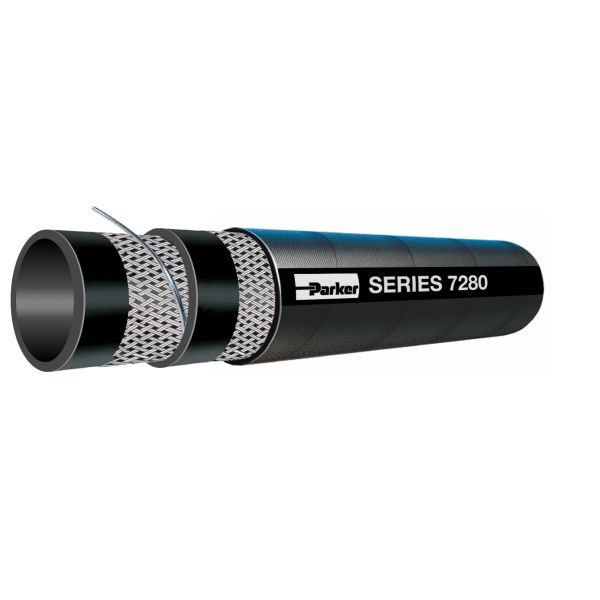

Parker's Series 7280 Hardwall Gasoline Dispenser Hose provides excellent service across a wide variety of industrial and commercial curb pump applications. The robust construction reduces meter creep for accurate consumption data and provides excellent crush resistance and kink resistance and full suction capability for maximum performance. The non-marking hose cover does not deface the finish of vehicles and resists abrasion, oil and weathering. Series 7280 is qualified with permanent crimp couplings for a safe and secure connection and provides robust service in consumer-oriented applications.
Markets:
• General Industrial
• Oil & Gas
Features/Benefits:
• Tube: Black nitrile for fuel compatibility to 180°F.
• Reinforcement: Multiple textile braids for kink resistance, and dual wire helix for a path to conduct an electrical charge to ground.
• Cover: Black CPE for abrasion, oil and weathering resistance.
Applications:
- media
• Refined fuels
• Diesel
• Ethanol
• Gasoline
• Oil
- usage
• Curb pumps
• Gasoline dispensers
• In-plant/tank transfer
• Car rental facilities
• Convenience stores
• Garages
• Service stations
Industry Standards:
• UL330/ULC
Safety/Technical:
• Design Factor: 5:1
• Not UL listed for E85 service
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
• Do not use Parker gasoline dispenser hose for aircraft fueling applications. Use only API/NFPA qualified hose for aircraft fueling applications.
| Media | Lubricants (Oils), Fuels (Diesel) - Check fuel type with our catalogue chart., Fuels (Gasoline) - Check fuel type with our catalogue chart., Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart., Fuels (Biodiesel to B20 in dedicated service) |
|---|---|
| Maximum Operating Pressure | 50 psi, 3 bar |
| Division | Hose Products Division |
| Application | Petroleum Transfer |
| Hose Inner Tube Material | Black, Nitrile |
| Inside Diameter | 1 inch, 25.4 mm |
| Maximum Operating Temperature | 180 °F, 82 °C |
| Minimum Operating Temperature | -40 °F, -40 °C |
| Minimum Bend Radius | 5 inch, 127 mm |
| Outside Diameter | 1.453 inch, 36.9 mm |
| Specifications Met | NFPA 30A, UL 30, N4 (factory assemblies), UL 330/ULC |
| Cover Material | Chloroprene Rubber (CR) |
| Hose Reinforcement Material | 2 Braids or Plies of Textile with Wire Helix |
| Weight Parker | 0.29 kg, 0.64 lb |
| Maximum Working Pressure (psi) | 50 |
| Hose I.D. (inch) | 1" |
| Cover Color | Black |
| Length per Package | 500 ft |
| Package Type | Reel |
| Cover Structure | Wrapped |
